AE3000SSH6589

Overview

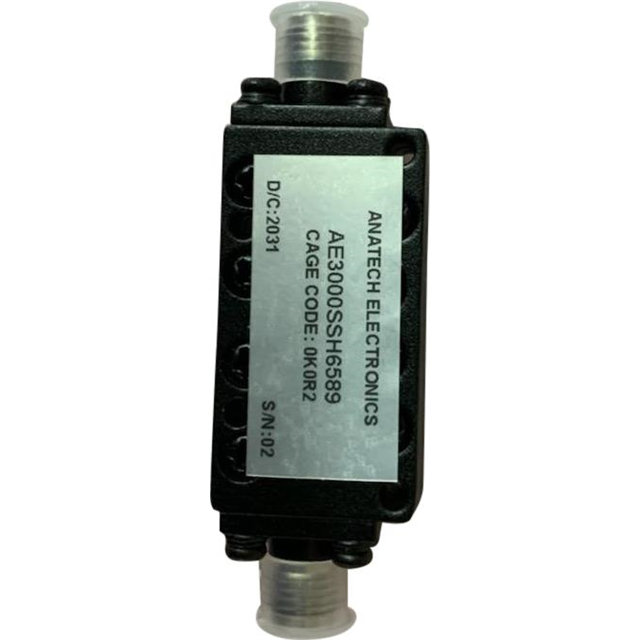

The AE3000SSH6589 is a suspended stripline high-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 3.0 GHz and a pass band extending from 3.0 to 21 GHz. Insertion loss is specified at ≤1.5 dB within the 3.0–3.1 GHz range and ≤1.0 dB across the 3.1–21 GHz spectrum. The component utilizes SMA connectors for interface connectivity.

Feature Summary

• Suspended stripline construction for stable RF performance
• High-pass filtering characteristic with defined cutoff threshold
• Low insertion loss profile across the operational bandwidth

Applications

• RF signal conditioning in microwave systems
• Harmonic suppression in communication transceivers
• Filtering applications requiring high-frequency pass bands

Procurement Notes

Verify the specific datasheet version and connector orientation prior to procurement. Confirm that the SMA interface type matches the system requirements. Ensure environmental ratings align with the intended deployment conditions. Cross-reference electrical specifications against current design constraints to guarantee compatibility with existing RF infrastructure components.

Selection Notes

Select this component when a high-pass response starting at 3 GHz is required. The suspended stripline design offers distinct advantages over planar technologies in terms of power handling and thermal stability. Evaluate the insertion loss specifications against system noise budget requirements. Consider the physical module form factor for integration into existing chassis or test setups.

Part Context

Anatech Electronics specializes in custom and standard RF filters, including high-pass, low-pass, and band-pass variants. This model belongs to their suspended stripline product line, which typically targets microwave frequencies. The manufacturer provides engineering support for spec matching and custom design adjustments based on existing database configurations.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify mechanical dimensions and pinout compatibility if considering alternative manufacturers. Consult Anatech Engineering for potential direct replacements or updated series equivalents.
