Product Detailed Parameters
- Description：RF FILTER BAND PASS 3.05GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：3.05GHz Center
- Bandwidth：100MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：0.7dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.969" L x 0.787" W (50.00mm x 20.00mm)
- Height (Max)：0.748" (19.00mm)
Download product information
Overview

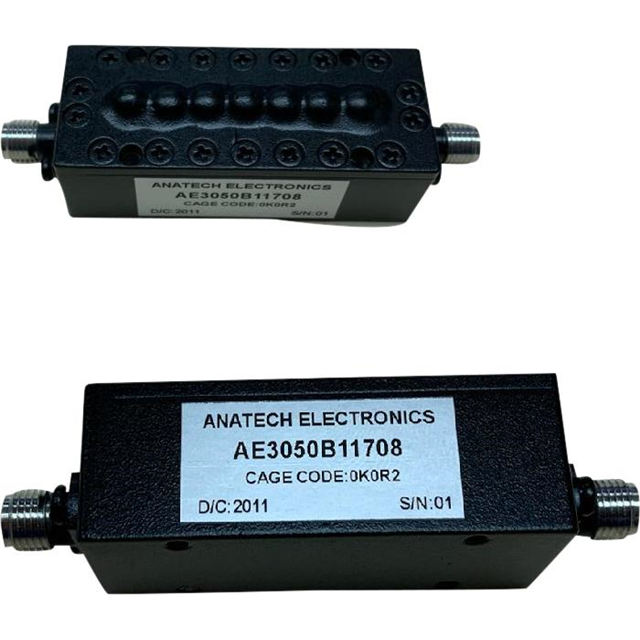

The AE3050B11708 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 3050 MHz and provides a bandwidth of 100 MHz. The component features an insertion loss of 0.7 dB and utilizes SMA connectors for interface connectivity. Packaged in a module format, this filter is designed for radio frequency applications requiring precise signal selection within the specified frequency range.
Feature Summary
- Cavity construction for stable band pass filtering
- SMA connector interface for modular integration
- Optimized insertion loss characteristics
Applications
- Radio frequency signal processing
- Communication system channel selection
- Broadband communication range support
Procurement Notes
Verify the specific datasheet version and manufacturer specifications directly from Anatech Electronics Inc. or authorized distributors to ensure compliance with technical requirements. Confirm that the SMA connector type and module packaging align with your system design constraints before finalizing procurement decisions.
Selection Notes
Select this component when a 3050 MHz center frequency and 100 MHz bandwidth are required for RF filtering. Consider the 0.7 dB insertion loss and SMA interface compatibility with existing circuitry. Ensure the module form factor fits the mechanical constraints of the intended application environment.
Part Context
This part belongs to the Anatech Electronics Inc. RF filter family, specifically designed as a cavity band pass filter. It is categorized under analog mixed-signal IC filters and is distinct from other models in the series by its specific 3050 MHz operating frequency and associated electrical parameters.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Consult the manufacturer for potential alternatives if sourcing becomes unavailable.
FAQ
What is the center frequency of the AE3050B11708?
The center frequency is 3050 MHz.
What type of connectors does this filter use?
It uses SMA connectors.
