AE310B10542

Overview

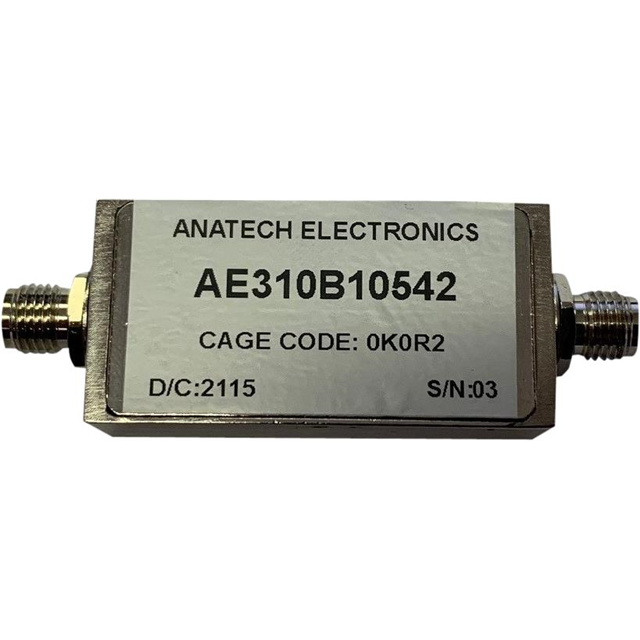

The AE310B10542 is an LC bandpass RF filter module manufactured by Anatech Electronics Inc. It features a center frequency of 310MHz and supports a signal bandwidth of up to 380MHz. The component utilizes SMA connectors for interface connections. Designed for broad communication range applications, this active filter module provides specific frequency selection capabilities within the radio frequency spectrum.

Feature Summary

• Utilizes LC bandpass filter technology for precise frequency selection
• Supports a signal bandwidth of up to 380MHz for broad communication range
• Equipped with SMA connectors for standard RF interfacing

Applications

• Radio frequency signal processing
• Broadband communication systems
• RF filter modules requiring 310MHz center frequency

Procurement Notes

Verify the exact datasheet version and connector orientation before integration. Confirm that the SMA connector type matches your system requirements. Check for any specific handling instructions regarding the LC components inside the module. Ensure environmental conditions align with the manufacturer's operational specifications for long-term reliability.

Selection Notes

Select this model when a fixed 310MHz center frequency with 380MHz bandwidth is required. The SMA interface dictates compatibility with existing coaxial infrastructure. Consider the module form factor for PCB or chassis mounting constraints. Verify that the LC topology meets the specific insertion loss and rejection requirements of the target application circuit.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including bandpass, low pass, and high pass designs. The AE310B10542 belongs to their line of modular RF filters designed for specific frequency bands. The company focuses on custom and standard filter solutions for communication and industrial applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Anatech Electronics engineering support for direct replacements or spec-matched alternatives if this specific module is discontinued or unavailable.
