AE3150B11709

Overview

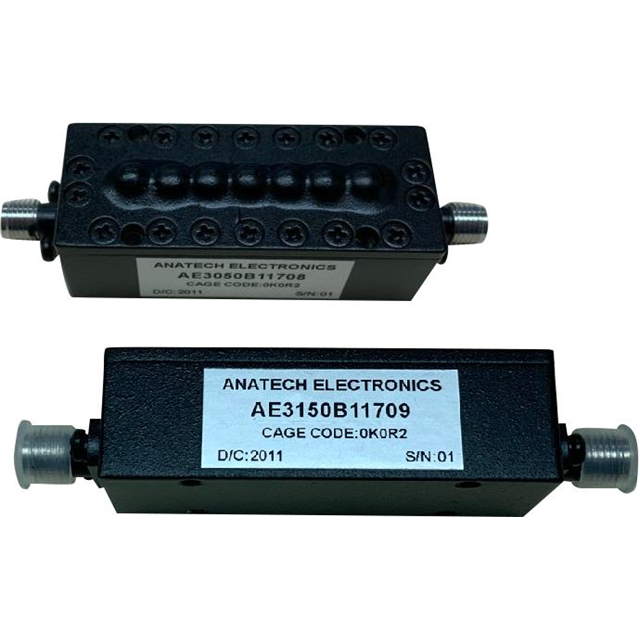

The AE3150B11709 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 3150 MHz and provides a bandwidth of 100 MHz, covering the passband range from 3100 to 3200 MHz. The component features a maximum insertion loss of 0.7 dB and a maximum voltage standing wave ratio (VSWR) of 1.3:1. It utilizes SMA connectors for interface connections.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering capability at 3150 MHz
• SMA connector interface

Applications

• Radio frequency signal processing
• Communication systems requiring 3150 MHz filtering

Procurement Notes

Verify the specific part number AE3150B11709 against official Anatech Electronics documentation to confirm electrical specifications such as insertion loss and VSWR. Ensure compatibility with SMA connector requirements and 3150 MHz center frequency needs before procurement.

Selection Notes

Select this component when a 3150 MHz center frequency with 100 MHz bandwidth is required. Consider the 0.7 dB maximum insertion loss and 1.3:1 VSWR limits for system integration. Verify SMA connector compatibility and cavity filter suitability for the intended RF environment.

Part Context

Anatech Electronics Inc. designs and manufactures RF and microwave filters. The AE3150B11709 belongs to their cavity band pass filter series, targeting specific frequency applications in radio frequency engineering.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult Anatech Electronics for potential alternatives or custom design options if exact replacement is needed.

FAQ

What is the center frequency of the AE3150B11709?

The center frequency is 3150 MHz.

What type of connectors does the AE3150B11709 use?

It uses SMA connectors.
