AE3250B11710

Overview

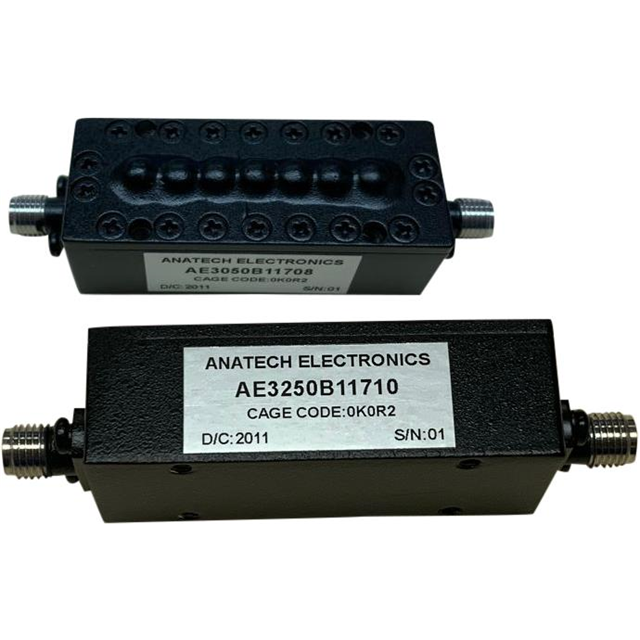

The AE3250B11710 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 3.25GHz and provides a bandwidth of 100MHz. The component features an insertion loss of 0.7dB. It is designed as a module equipped with SMA connectors for interface connections. The unit utilizes chassis mounting for installation.

Feature Summary

• Cavity construction for band pass filtering
• SMA connector interfaces
• Chassis mounting configuration

Applications

• Radio frequency signal processing
• Communication system filtering
• RF module integration

Procurement Notes

Verify the specific datasheet AE3250B11710.pdf for complete electrical specifications and mechanical drawings. Confirm that the SMA connector type and chassis mounting requirements align with your system design. Ensure the 3.25GHz center frequency and 100MHz bandwidth meet your application needs before procurement.

Selection Notes

Select this component when a fixed center frequency of 3.25GHz is required. The 100MHz bandwidth and 0.7dB insertion loss define its performance envelope. Consider the chassis mounting style and SMA connectors for physical integration compatibility within the target RF assembly.

Part Context

This part belongs to the Anatech Electronics Inc. RF filters category. It is identified as a cavity band pass filter. The model number AE3250B11710 corresponds to the specific 3.25GHz variant within their product line.

Replacement Considerations

No public substitute part numbers are confirmed in available documentation. Verify compatibility with existing systems if considering alternatives.
