AE3250SSH6553

Overview

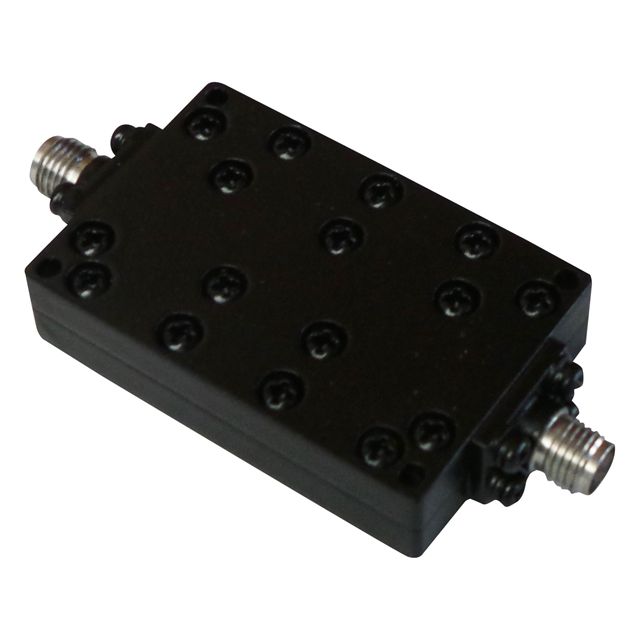

The AE3250SSH6553 is a suspended stripline high-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 3.25 GHz and operates within a bandwidth up to 18 GHz. The module incorporates SMA connectors for interface connectivity. Key electrical specifications include an insertion loss ranging from 1 to 2 dB and a rejection level of 60 dB. The component is rated for a power handling capacity of 15 W. It is RoHS3 compliant and packaged in a box.

Feature Summary

• Suspended stripline construction for stable RF performance
• High-power handling capability suitable for demanding applications
• Integrated SMA connectors for direct system integration

Applications

• RF signal processing systems requiring high-frequency filtering
• Test and measurement equipment operating above 3.25 GHz
• Communication infrastructure components

Procurement Notes

Verify the specific suffix codes against the manufacturer's official documentation to ensure exact electrical tolerances and connector types match project requirements. Confirm RoHS3 compliance status with the supplier if environmental regulations are critical. Check for updated datasheets as component revisions may alter physical dimensions or minor electrical parameters without changing the base part number.

Selection Notes

Select this component when a high-pass filter with a 3.25 GHz cutoff is required for frequencies extending to 18 GHz. Ensure the system can accommodate the 15 W power rating and that SMA interfaces align with existing cabling. Compare insertion loss specifications against system budget constraints to verify signal integrity preservation across the passband.

Part Context

This part belongs to the Anatech Electronics RF filter portfolio, specifically utilizing suspended stripline technology. This construction method typically offers superior thermal management and consistent impedance characteristics compared to standard microstrip designs. The module format allows for easy chassis mounting or integration into larger RF assemblies.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
