Product Detailed Parameters
- Description：RF FILTER BANDPASS 3.3GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：3.3GHz Center
- Bandwidth：410MHz
- Filter Type：Band Pass
- Ripple：0.5dB
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：3.500" L x 1.750" W (88.90mm x 44.45mm)
- Height (Max)：0.512" (13.00mm)
Download product information
Overview

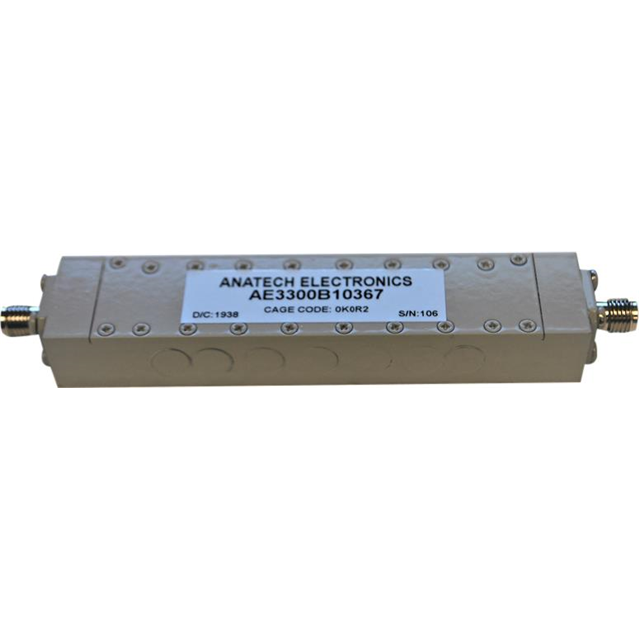

The AE3300B10367 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 3.3GHz and provides a bandwidth of 410MHz. The component features SMA connectors for interface connectivity. Technical specifications include a ripple of 0.5dB. This module is designed for radio frequency applications requiring precise signal filtering within the specified frequency range.
Feature Summary
- Cavity construction for stable RF performance
- SMA connector interface for standard integration
- Bandpass filtering at 3.3GHz center frequency
Applications
- Radio frequency signal processing
- Communication system filtering
- RF module integration
Procurement Notes
Verify the specific datasheet version and connector orientation prior to ordering. Confirm that the SMA connector gender and cable assembly requirements match the system design. Ensure environmental ratings meet operational needs. Cross-reference part numbers with official manufacturer documentation to avoid substitution errors. Validate electrical parameters against application requirements before procurement.
Selection Notes
Select this component when a 3.3GHz center frequency with 410MHz bandwidth is required. Consider the cavity construction for stability. Verify SMA compatibility with existing infrastructure. Evaluate insertion loss and ripple specifications against system sensitivity. Ensure physical dimensions fit the enclosure constraints.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters. The company offers standard and custom solutions for military and commercial sectors. This model belongs to their cavity filter series, designed for high-performance frequency selection in demanding environments.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Custom designs may be requested if exact replacement is unavailable. Consult manufacturer engineering database for spec-matched alternatives.
FAQ
What is the center frequency of the AE3300B10367?
The center frequency is 3.3GHz.
What type of connectors does this filter use?
It uses SMA connectors.
