AE337N2227

Overview

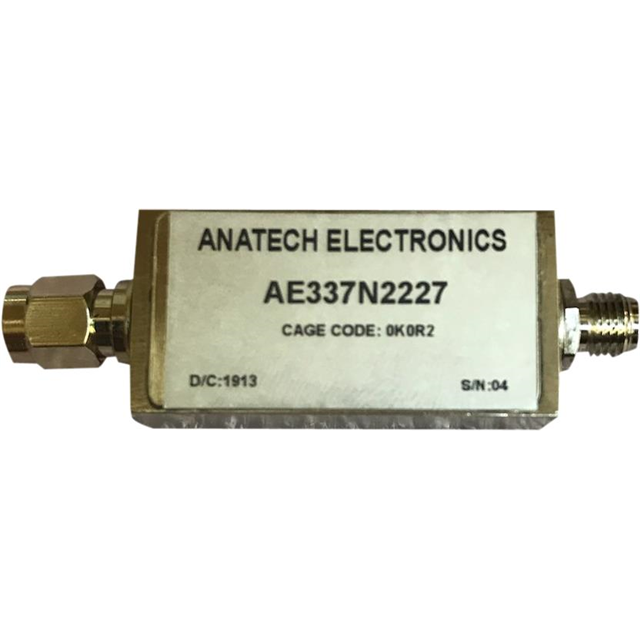

The AE337N2227 is a band stop RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 337.77 MHz and features a bandwidth of 1 MHz. The insertion loss is specified at 3.5 dB. This component is housed in a module configuration equipped with SMA connectors for interfacing.

Feature Summary

• LC notch filter design
• Band stop functionality
• SMA connector interface

Applications

• Radio frequency signal processing
• RF filtering applications
• Military equipment
• Commercial electronics

Procurement Notes

Verify the specific datasheet for detailed electrical characteristics and mechanical dimensions before integration. Confirm that the SMA connector type matches your system requirements. Ensure environmental classifications meet your operational standards. Cross-reference the part number to avoid confusion with similar models in the AE series.

Selection Notes

Select this component when a narrowband rejection at 337.77 MHz is required. The 1 MHz bandwidth provides precise filtering capabilities. Consider the 3.5 dB insertion loss impact on system performance. The module form factor simplifies installation compared to discrete components.

Part Context

Anatech Electronics Inc. specializes in standard and custom radio frequency filters for military and commercial sectors. The AE series includes various lumped element filters covering frequencies from 5 to 1850 MHz. Datasheets for these models typically include outline drawings and detailed product specifications.

Replacement Considerations

Consult official documentation for exact substitutes. Similar models in the AE series may offer different center frequencies or bandwidths. Verify compatibility with existing SMA interfaces before substitution.
