AE3400WN2272

Overview

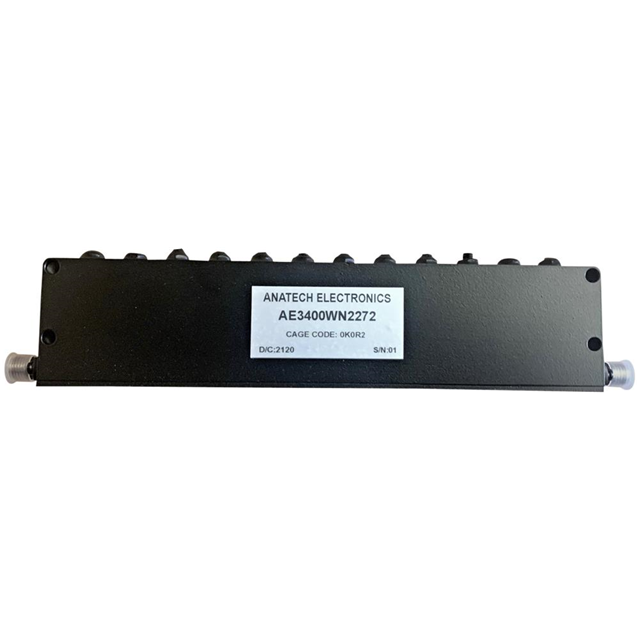

The AE3400WN2272 is a waveguide band stop filter manufactured by Anatech Electronics Inc. It features a center frequency of 3.4 GHz with a bandwidth of 200 MHz. The device utilizes SMA connectors for interface connections. Electrical specifications define the stop band frequency range from 3.3 to 3.5 GHz, providing attenuation of at least 40 dB within this range. The pass bands cover DC to 3.22 GHz and 3.58 to 7.0 GHz.

Feature Summary

• Waveguide construction for RF signal filtering
• Band stop functionality targeting specific interference frequencies
• SMA connector interfaces for system integration

Applications

• RF communication systems requiring notch filtering
• Microwave equipment interference suppression
• Test and measurement instrumentation

Procurement Notes

Verify the exact datasheet version and connector orientation before procurement. Confirm that the SMA connector gender and waveguide dimensions match the host system requirements. Ensure environmental ratings meet operational conditions. Cross-reference part numbers with official Anatech Electronics documentation to avoid counterfeit or obsolete stock issues during acquisition.

Selection Notes

Select this component when a fixed 3.4 GHz notch filter is required in a waveguide architecture. Compare insertion loss and attenuation specs against system sensitivity requirements. Verify physical waveguide size compatibility with existing housing. Consider thermal management needs if operating in high-power environments.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial applications. This model belongs to their standard waveguide filter lineup, designed for precise frequency rejection in specialized radio frequency circuits.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Custom designs may be requested through manufacturer engineering services if direct replacement is unavailable.
