Product Detailed Parameters
- Description：RF FILTER LOW PASS 3.5GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：3.5GHz (Cutoff)
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：0.2dB
- Insertion Loss：0.7dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：0.750" L x 0.500" W (19.05mm x 12.70mm)
- Height (Max)：0.400" (10.16mm)
Download product information
Overview

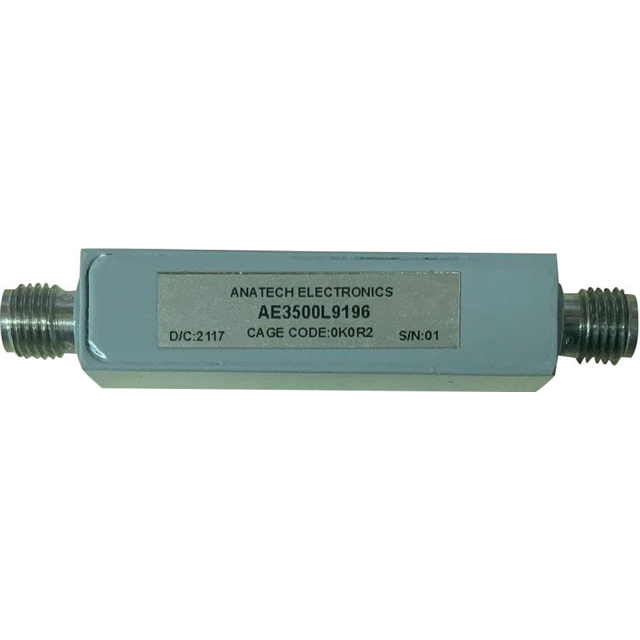

The AE3500L9196 is a low-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 3.5GHz and maintains an insertion loss of 0.7dB. The component utilizes SMA connectors for interface connectivity. Its physical design includes a box enclosure with a maximum height of 0.400 inches (10.16mm). Classified under ECCN EAR99, this LC filter is engineered for radio frequency signal processing applications requiring specific attenuation characteristics above the cutoff threshold.
Feature Summary
- Low-pass filtering architecture designed for radio frequency signal management
- SMA connector interface for standardized RF integration
- Box-style enclosure providing structural protection and shielding
Applications
- Radio frequency signal conditioning systems
- Communication equipment requiring harmonic suppression
- Test and measurement instrumentation
Procurement Notes
Verify the specific datasheet version to confirm mechanical dimensions and electrical tolerances match your system requirements. Ensure SMA connector compatibility with existing PCB traces or cable assemblies. Check regulatory compliance status if operating in restricted frequency bands. Confirm package orientation and mounting hole specifications during integration planning.
Selection Notes
Select this component when a 3.5GHz cutoff frequency aligns with system bandwidth needs. Consider the 0.7dB insertion loss impact on overall signal chain efficiency. Evaluate the box form factor against available chassis space. Verify that SMA interfaces suit the interconnect strategy without requiring adapters.
Part Context
Anatech Electronics Inc. specializes in passive RF components, including filters and attenuators. The AE3500L9196 belongs to their line of discrete low-pass modules. These components are typically used in environments where precise frequency discrimination is necessary. The manufacturer focuses on high-reliability solutions for aerospace and defense sectors.
Replacement Considerations
Consult official substitution lists from Anatech Electronics Inc. for verified equivalents. Generic replacements may not match the 3.5GHz cutoff or 0.7dB insertion loss specifications. Verify mechanical fit and SMA pinout compatibility before swapping.
