AE350B9834

Overview

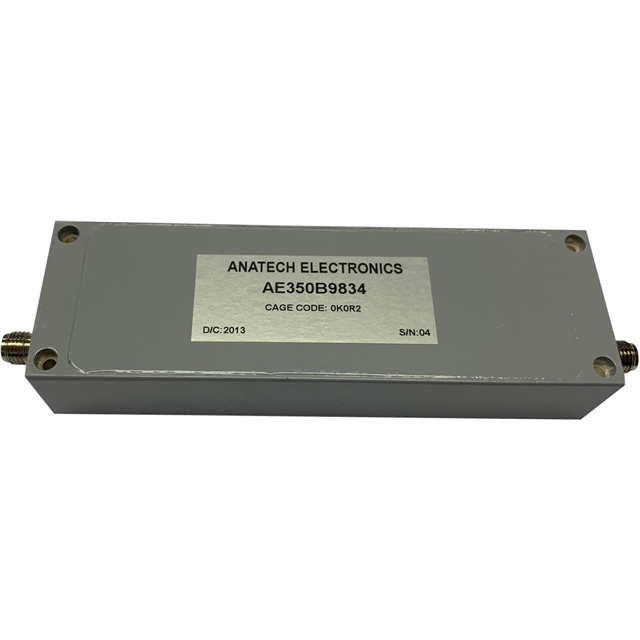

The AE350B9834 is a radio frequency bandpass filter module manufactured by Anatech Electronics Inc. It operates with a center frequency of 350 MHz and provides a bandwidth of 293 MHz at the 1dB level. The component utilizes LC technology for signal filtering applications. It is housed in a module format equipped with SMA connectors to facilitate integration into RF systems.

Feature Summary

• LC bandpass filter design
• SMA connector interface
• Module form factor

Applications

• RF signal processing
• Radio frequency system integration

Procurement Notes

Verify the specific datasheet AE350B9834.pdf from Anatech Electronics Inc. for complete electrical specifications and mechanical drawings. Confirm connector types and mounting requirements prior to procurement. Ensure compatibility with existing RF infrastructure. Check for updated revision information in official documentation.

Selection Notes

Select this component for applications requiring a 350 MHz center frequency bandpass response. The 293 MHz bandwidth at 1dB defines the operational passband. Verify that the LC technology meets the system's loss and rejection requirements. Ensure SMA connectors align with the system interconnect standards.

Part Context

This part belongs to the Anatech Electronics Inc. RF filter product line. It is categorized as an LC bandpass filter module. The manufacturer specializes in radio frequency components. This specific model is designed for fixed-frequency filtering tasks within defined bandwidth parameters.

Replacement Considerations

Consult the official Anatech Electronics Inc. datasheet for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' filters without technical validation. Verify matching center frequency, bandwidth, and connector type before substitution.
