AE3550B11506

Overview

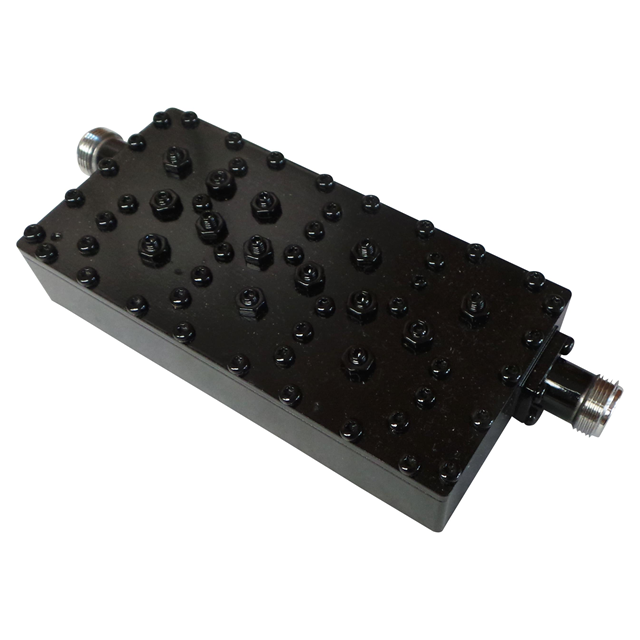

The AE3550B11506 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 3550 MHz and provides an 80 MHz bandwidth at 1 dB insertion loss. The component is housed in a module package equipped with SMA connectors and features a maximum height of 1.650 inches (41.91 mm). Designed for chassis mounting, this active device is engineered for radio frequency signal filtering applications requiring precise frequency selection.

Feature Summary

• Cavity construction for stable RF performance
• SMA connector interface for standard integration
• Chassis mount design for secure installation

Applications

• Radio frequency signal processing systems
• Telecommunications infrastructure equipment
• Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and mechanical drawings before procurement. Ensure that the SMA connector polarity and mating requirements align with the system interface specifications. Confirm RoHS compliance status if required by regulatory standards. Cross-reference the manufacturer's part number with authorized distributor listings to ensure authenticity and availability of current production units.

Selection Notes

Select this component when a fixed 3550 MHz center frequency with 80 MHz bandwidth is required. The SMA connector type dictates compatibility with existing cable assemblies. The chassis mount form factor influences enclosure design and thermal management strategies. Evaluate insertion loss specifications against system link budget requirements to ensure adequate signal transmission efficiency.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. This company produces various filter types including low pass, high pass, and bandpass configurations. The AE3550B11506 represents their cavity filter technology, which is typically utilized in demanding RF environments where high selectivity and power handling are necessary for reliable operation.

Replacement Considerations

Consult official manufacturer documentation for verified substitute part numbers. Do not assume functional equivalence based on similar center frequencies alone. Verify mechanical dimensions and connector types to ensure physical compatibility within the existing assembly.
