AE3800L9255

Overview

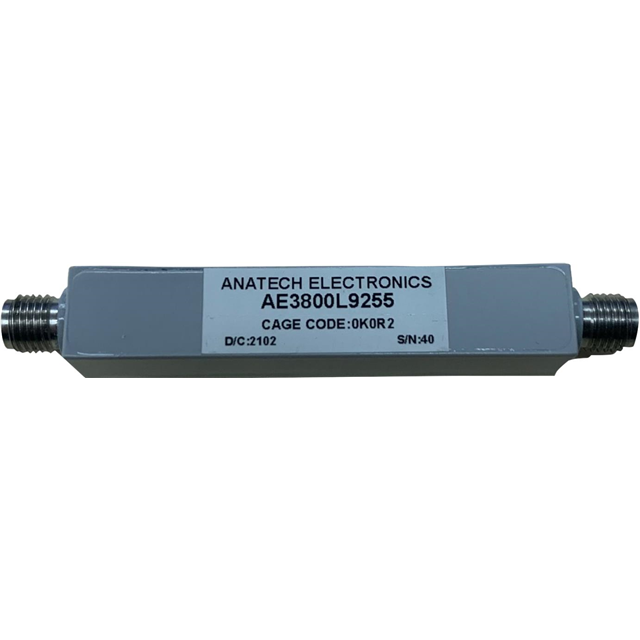

The AE3800L9255 is a low-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 3.8 GHz and utilizes SMA connectors for interface. The component is supplied in a box configuration and is RoHS compliant, indicating lead-free construction.

Feature Summary

• Low-pass filtering capability with a 3.8 GHz cutoff frequency
• SMA connector interface for standard RF integration
• RoHS compliant lead-free construction

Applications

• RF signal processing systems
• Radio frequency equipment
• Communication infrastructure components

Procurement Notes

Verify the specific datasheet version for the AE3800L9255 to confirm detailed electrical performance characteristics such as insertion loss and return loss. Ensure compatibility with SMA connector types and check for any specific handling requirements associated with RF filter modules during installation.

Selection Notes

Select this component when a fixed 3.8 GHz low-pass response is required. Confirm that the SMA interface matches the system design. Verify that the box packaging form factor fits the available space constraints within the assembly.

Part Context

Anatech Electronics Inc. produces specialized RF filters. The AE3800L9255 is part of their lineup of low-pass filters designed for radio frequency applications. This model specifically targets frequencies up to 3.8 GHz.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
