AE3800N2252

Overview

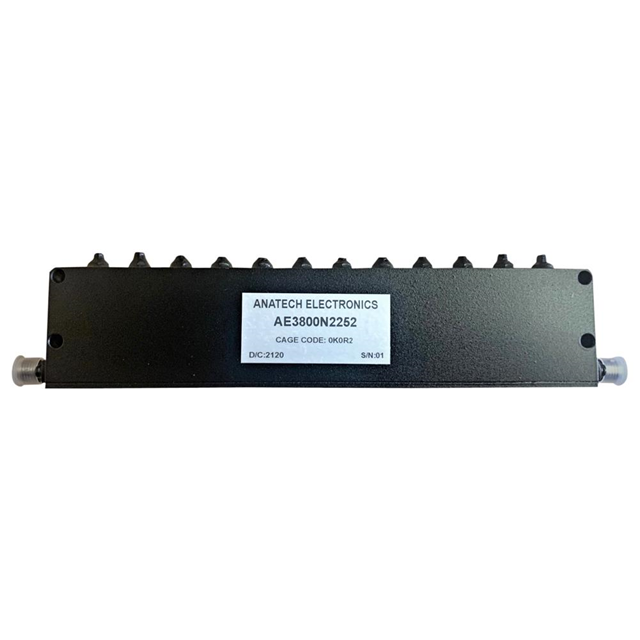

The AE3800N2252 is a cavity bandstop RF filter module manufactured by Anatech Electronics Inc. It operates with a center frequency of 3.8 GHz and features a bandwidth of 50 MHz. Designed for radio frequency applications, this component functions as a notch filter to reject specific signal frequencies within its designated passband.

Feature Summary

• Cavity construction for high performance
• Bandstop filtering capability
• Module form factor

Applications

• Radio frequency systems
• Military applications
• Commercial aerospace systems
• Defense electronics

Procurement Notes

Verify the exact part number AE3800N2252 against official Anatech Electronics documentation to confirm specifications. Ensure compatibility with system requirements for 3.8 GHz center frequency and 50 MHz bandwidth. Check for any specific handling or installation guidelines provided in the manufacturer datasheet before integration.

Selection Notes

Select this component when a fixed 3.8 GHz notch filter is required. Consider the cavity design for robustness in demanding environments. Verify that the 50 MHz bandwidth meets the rejection needs of the target application without affecting adjacent desired signals.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for commercial, aerospace, and defense sectors. The company produces standard and custom components, including diplexers and modules. This product falls under their line of radio frequency filters designed for high-reliability applications.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult Anatech Electronics directly for potential equivalents or custom alternatives if sourcing issues arise.
