AE39000B11561

Overview

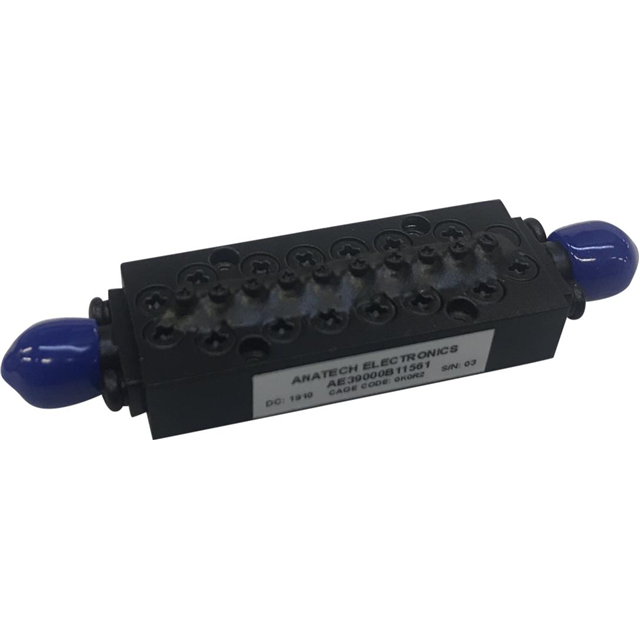

The AE39000B11561 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 39 GHz and provides a bandwidth of 6 GHz, covering the range from 36 to 42 GHz. The component exhibits an insertion loss of less than 1.5 dB. It is supplied in a box package format.

Feature Summary

• Cavity construction for high-performance filtering
• Bandpass configuration centered at 39 GHz
• Low insertion loss characteristic

Applications

• Radio frequency signal processing
• Microwave communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific part number AE39000B11561 against official Anatech Electronics documentation to confirm technical specifications. Ensure compatibility with system requirements before procurement. Check for updated datasheets regarding mechanical dimensions and electrical tolerances.

Selection Notes

Select this component when a 36-42 GHz passband is required. Consider the 1.5 dB insertion loss limit for link budget calculations. Verify that the cavity module form factor fits the available space in the design.

Part Context

This part belongs to the Anatech Electronics RF filters category. It is distinct from other models like AE387B10680 or AE390B9770 which operate at different frequencies or use different technologies such as LC circuits.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult manufacturer guidelines for potential alternatives if sourcing is unavailable.
