AE3910B11469

Overview

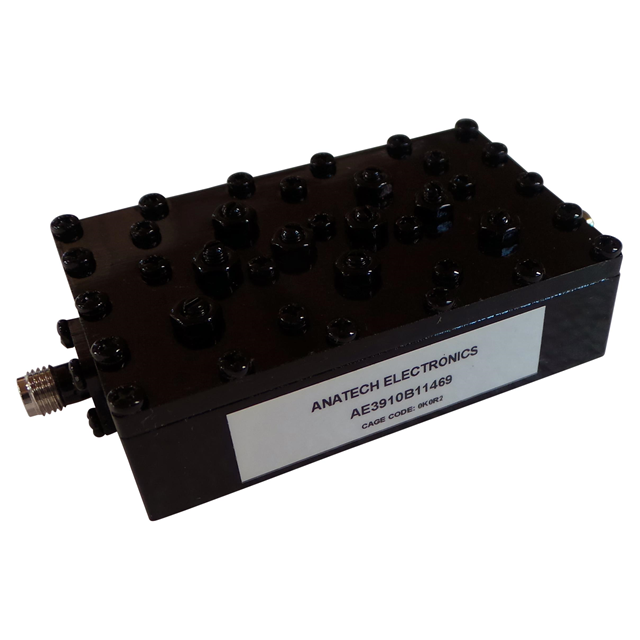

The AE3910B11469 is a cavity bandpass filter manufactured by Anatech Electronics Inc., designed for RF applications. It operates at a center frequency of 3910 MHz with a 3dB bandwidth of 15 MHz +/- 2 MHz. The component features a maximum insertion loss of 3.5 dB and a minimum return loss of 15 dB. It has a maximum height of 0.990 inches (25.15 mm). This filter supports signal bandwidths up to 15 MHz, making it suitable for broad communication ranges in military and commercial sectors.

Feature Summary

• Utilizes a cavity bandpass filter design for effective signal selection
• Supports a signal bandwidth of up to 15 MHz for broad communication range
• Constructed as a modified RF filter unit

Applications

• Military communication systems
• Commercial RF infrastructure
• Broadband communication networks

Procurement Notes

Verify the specific datasheet version when ordering, as suffixes like -DG may indicate modifications. Confirm RoHS compliance status directly with the manufacturer or authorized distributor, as regulatory status can vary by production batch. Ensure the required center frequency and bandwidth specifications match the system requirements before procurement.

Selection Notes

Select this component when a fixed center frequency of 3910 MHz is required. Consider the 3.5 dB maximum insertion loss for link budget calculations. The physical height of 0.990 inches must be accommodated within the equipment enclosure. Verify that the 15 MHz bandwidth aligns with the necessary signal transmission width.

Part Context

This part belongs to the Anatech series of multi-frequency cavity bandpass filters. Anatech Electronics specializes in standard and custom radio frequency filters for both military and commercial markets. The product line includes various models tailored to different frequency bands, such as the AE2097B1360 and AE1750B11251.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
