AE3930B11470

Overview

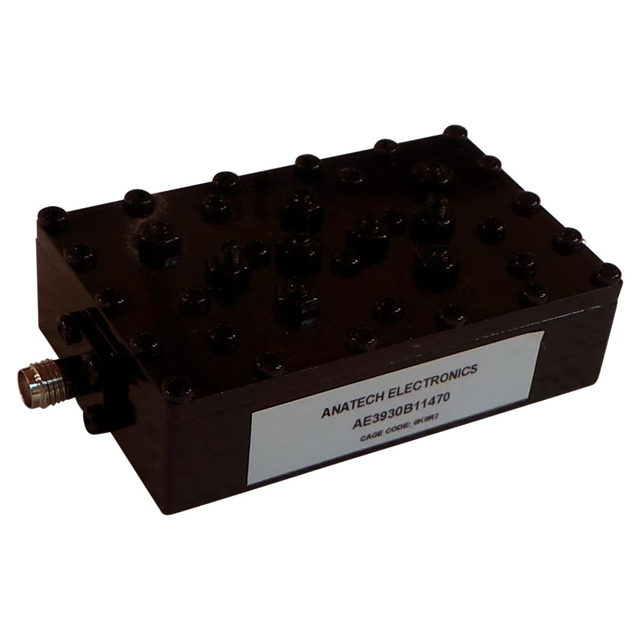

The AE3930B11470 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 3.93 GHz and provides a bandwidth of 15 MHz. The component features an insertion loss of 3.5 dB and utilizes SMA connectors for interface connectivity. Designed as a module, it serves as a specialized radio frequency filtering solution within electronic systems requiring precise signal selection at this specific microwave frequency range.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability centered at 3.93 GHz
• SMA connector interface for modular integration

Applications

• Radio frequency signal processing
• Microwave communication systems
• Test and measurement equipment

Procurement Notes

Verify the exact center frequency and bandwidth specifications against the official manufacturer datasheet before procurement. Confirm that the SMA connector type matches the system requirements. Ensure the operating environment aligns with the component's thermal and mechanical ratings to maintain performance integrity.

Selection Notes

Select this component when a fixed center frequency of 3.93 GHz with a narrow 15 MHz bandwidth is required. The 3.5 dB insertion loss should be evaluated against system link budget constraints. Consider the physical module form factor and SMA interface compatibility during system design integration.

Part Context

This part belongs to the Anatech Electronics Inc. line of cavity bandpass filters. These components are engineered for high-selectivity applications in the microwave spectrum. The model designation indicates specific electrical parameters tailored for precise frequency isolation in RF architectures.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with any alternative components by matching the 3.93 GHz center frequency, 15 MHz bandwidth, and SMA interface specifications.
