AE400H9032

Overview

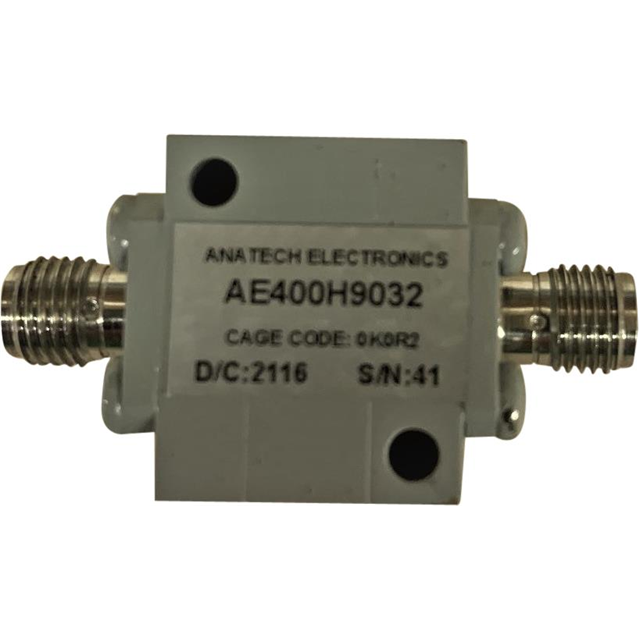

The AE400H9032 is a high-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 400 MHz and operates within a bandwidth extending to 5.6 GHz. The component exhibits an insertion loss of 1 dB or less. It utilizes SMA connectors for interface connectivity. The physical dimensions are specified as 0.750 inches in length by 0.625 inches in width.

Feature Summary

• High-pass filtering capability with a defined 400 MHz cutoff frequency
• Wide operational bandwidth extending up to 5.6 GHz
• Low insertion loss characteristic of 1 dB
• Integrated SMA connector interfaces

Applications

• Radio frequency signal processing
• RF filter modules requiring high-pass characteristics
• Electronic systems utilizing SMA connected components

Procurement Notes

Verify the specific datasheet version and manufacturer documentation for the AE400H9032 to confirm exact electrical tolerances and mechanical specifications. Ensure compatibility with system requirements regarding the 400 MHz cutoff and 5.6 GHz bandwidth limits. Confirm that SMA connector types match the intended application infrastructure before procurement.

Selection Notes

Select this component when a high-pass filter with a 400 MHz cutoff is required. Consider the 5.6 GHz bandwidth limit and 1 dB insertion loss for signal integrity needs. Verify that the SMA connector style fits the board layout and that the physical dimensions of 0.750 x 0.625 inches accommodate the design constraints.

Part Context

Anatech Electronics Inc. produces specialized RF filters, including band-pass and high-pass variants. The AE400H9032 belongs to their line of LC high-pass filters designed for radio frequency applications. These components typically utilize through-hole or connectorized mounting methods to integrate into larger RF systems.

Replacement Considerations

Publicly confirmed substitute part numbers for the AE400H9032 were not identified in available documentation. Evaluate other Anatech high-pass models only if they explicitly match the 400 MHz cutoff and SMA interface specifications.
