AE400L9176

Overview

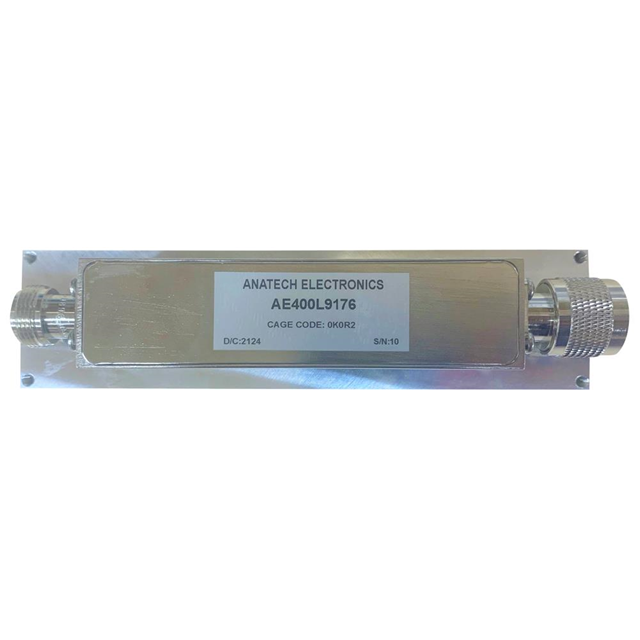

The AE400L9176 is a low-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 400 MHz and operates within a 400 MHz bandwidth. The component exhibits an insertion loss of 0.6 dB. Designed as a modular unit, it serves as a radio frequency filtering solution for electronic systems requiring signal attenuation above the specified cutoff threshold.

Feature Summary

• Low-pass filtering capability with a defined 400 MHz cutoff frequency
• Modular construction for integration into RF circuits
• Optimized insertion loss characteristics at the operating frequency

Applications

• Radio frequency signal conditioning
• Communication system interference suppression
• Electronic equipment input/output filtering

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and pinout configurations prior to integration. Ensure that the 0.6 dB insertion loss specification aligns with system power budget requirements. Confirm environmental operating limits if deployment occurs in extreme temperature conditions. Cross-reference manufacturer documentation for any RoHS compliance status updates or material declarations required for regulatory adherence.

Selection Notes

Select this component when a fixed 400 MHz low-pass response is required for RF applications. Consider the modular form factor for ease of assembly compared to surface-mount alternatives. Evaluate the 0.6 dB insertion loss against system sensitivity thresholds. Verify that the physical package dimensions fit within the designated enclosure space without requiring custom mounting solutions.

Part Context

Anatech Electronics Inc. specializes in passive RF components, including filters and resonators. The AE400L9176 belongs to their line of discrete RF filters designed for industrial and commercial communication applications. This model represents a standard low-pass configuration intended for general-purpose frequency management in radio frequency environments.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Engineers should consult the manufacturer directly for potential obsolescence management or equivalent alternative recommendations based on updated product lines.
