AE4010B11635

Overview

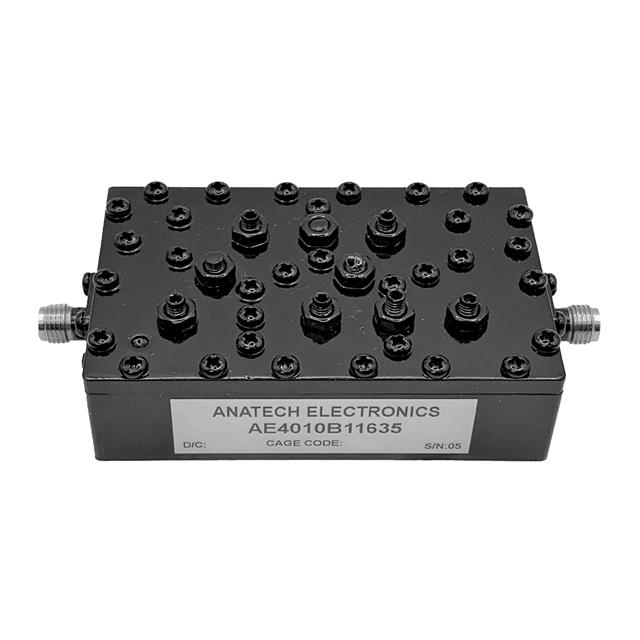

The AE4010B11635 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 4.01 GHz with a bandwidth of 15 MHz. The component exhibits an insertion loss of 3.5 dB and utilizes SMA connectors for interface. Designed for chassis mounting, this module serves as a specialized radio frequency filtering solution.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability centered at 4.01 GHz
• SMA connector interface for signal transmission

Applications

• Radio frequency signal processing systems
• Chassis-mounted RF equipment
• Communication infrastructure filtering

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector orientation prior to procurement. Ensure that the chassis mounting requirements align with your system design specifications. Confirm that the SMA connector type matches your existing cabling infrastructure to avoid integration issues during installation.

Selection Notes

Select this component when a fixed center frequency of 4.01 GHz is required. The 15 MHz bandwidth defines the passband characteristics. Consider the 3.5 dB insertion loss impact on system gain. Chassis mounting dictates the physical integration method within the enclosure layout.

Part Context

This part belongs to the Anatech Electronics Inc. RF filter family, specifically cavity bandpass modules. These components are engineered for high-reliability applications requiring precise frequency selection. The AE series typically offers robust performance in demanding electromagnetic environments.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement. Verify compatibility with any alternative filters based on center frequency, bandwidth, and connector type specifications.
