AE4030B11471

Overview

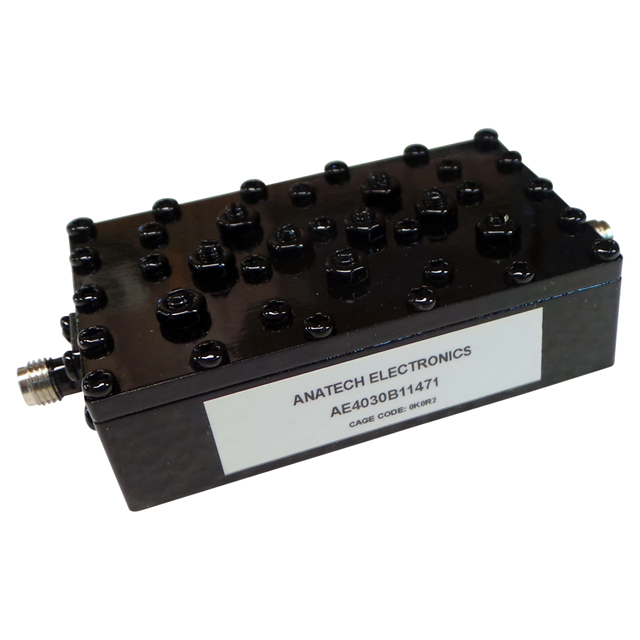

The AE4030B11471 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 4.03 GHz and provides a bandwidth of 15 MHz. The component exhibits an insertion loss of 3.5 dB. It is housed in a module configuration equipped with SMA connectors for interfacing.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering characteristic at 4.03 GHz
• SMA connector interface

Applications

• Radio frequency signal processing
• Communication system filtering
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and mechanical dimensions before integration. Confirm that the SMA connector type matches the system requirements. Ensure environmental conditions align with the component's operational specifications as defined in the official documentation.

Selection Notes

Select this component when a fixed center frequency of 4.03 GHz with narrow 15 MHz bandwidth is required. The 3.5 dB insertion loss should be evaluated against system link budget constraints. The module form factor and SMA connectors dictate physical integration and cabling choices within the assembly.

Part Context

This part belongs to the Anatech Electronics Inc. line of RF cavity filters. These components are designed for high-reliability applications requiring stable frequency response. The model number indicates specific frequency and bandwidth parameters unique to this unit within the broader product family.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Replacement requires matching the 4.03 GHz center frequency, 15 MHz bandwidth, and 3.5 dB insertion loss characteristics exactly.
