Product Detailed Parameters
- Description：RF FILTER BAND PASS 4.07GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：4.07GHz Center
- Bandwidth：15MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：3.5dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：2.638" L x 1.654" W (67.00mm x 42.00mm)
- Height (Max)：0.984" (25.00mm)
Download product information
Overview

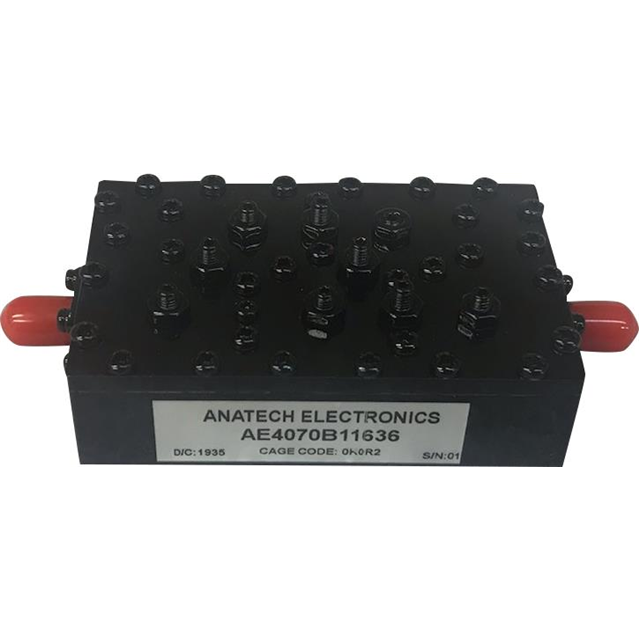

The AE4070B11636 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 4070 MHz and features a bandwidth of 15 MHz. The component exhibits an insertion loss of 3.5 dB. It is housed in a module package equipped with SMA connectors, designed for radio frequency signal processing applications requiring specific frequency selection.
Feature Summary
- Cavity construction for stable RF filtering performance
- SMA connector interface for modular integration
- Bandpass frequency response centered at 4070 MHz
Applications
- Radio frequency signal conditioning
- Communication system frequency selection
- RF module interconnection
Procurement Notes
Verify the manufacturer part number AE4070B11636 against official Anatech Electronics Inc. documentation to ensure authenticity. Confirm that the SMA connectors and module form factor match the required system interface specifications. Request original datasheets to validate the 4070 MHz center frequency and 15 MHz bandwidth parameters before procurement.
Selection Notes
Select this component when a fixed 4070 MHz center frequency with 15 MHz bandwidth is required. Ensure the system supports SMA connectivity and can accommodate the module physical dimensions. Verify that the 3.5 dB insertion loss meets the link budget requirements for the intended RF application path.
Part Context
This part belongs to the Anatech Electronics Inc. RF filters category, specifically within their cavity filter lineup. These components are engineered for high-performance frequency selection in radio frequency environments, utilizing resonant cavity structures to achieve precise bandpass characteristics distinct from planar filter technologies.
Replacement Considerations
No publicly confirmed substitute part numbers are available in the provided source data. Consult Anatech Electronics Inc. directly for equivalent or cross-reference options if this specific model is unavailable.
FAQ
What is the center frequency of the AE4070B11636?
The center frequency is 4070 MHz.
What type of connectors does this filter use?
It uses SMA connectors.
