Product Detailed Parameters
- Description：RF FILTER BAND PASS 4.09GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：4.09GHz Center
- Bandwidth：15MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：3.5dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：2.640" L x 1.650" W (67.06mm x 41.91mm)
- Height (Max)：0.990" (25.15mm)
Download product information
Overview

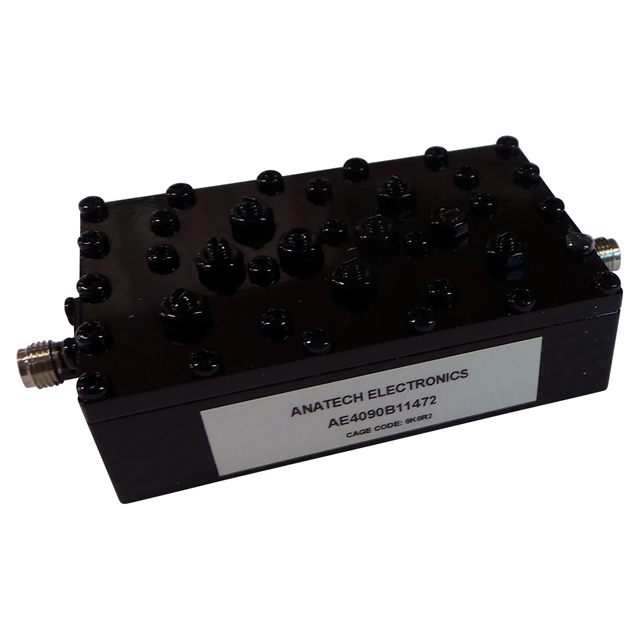

The AE4090B11472 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 4090 MHz with a 3dB bandwidth of 15 MHz plus or minus 2 MHz. The component features SMA female connectors and exhibits a maximum insertion loss of 3.5 dB at the center frequency. Minimum return loss is specified at 15 dB. This module is designed for radio frequency applications requiring precise signal filtering within the specified microwave range.
Feature Summary
- Cavity construction for stable RF performance
- SMA female connector interface
- Bandpass filtering capability
Applications
- Radio frequency signal processing
- Microwave communication systems
- RF test and measurement equipment
Procurement Notes
Verify the specific electrical parameters against the official Anatech Electronics datasheet before procurement. Confirm that the SMA female connector type matches your system requirements. Ensure the center frequency and bandwidth specifications align with your application needs. Check RoHS compliance status if required by your manufacturing standards. Request the latest revision of the datasheet to confirm all technical details.
Selection Notes
Select this component when a fixed center frequency of 4090 MHz is required. Consider the 15 MHz bandwidth for narrowband applications. Evaluate the 3.5 dB insertion loss against system power budgets. Verify compatibility with SMA connectors in your design. Compare performance metrics with alternative cavity filters if tighter specifications are needed.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters, including bandpass, low pass, and high pass designs. The company offers custom engineering services and maintains an ISO 9001:2015 certification. The AE4090B11472 belongs to their cavity filter product line, which provides robust performance for demanding RF environments.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Anatech Electronics directly for potential cross-references or custom alternatives that meet similar electrical specifications.
