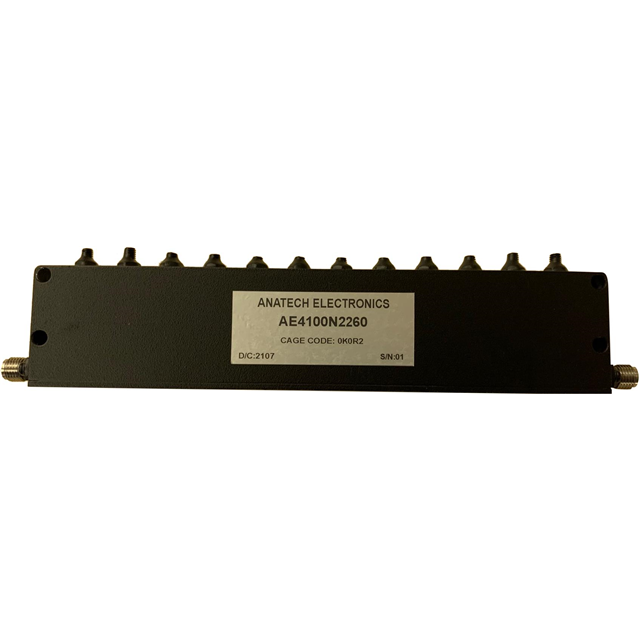

AE4100N2260

$1,291.07

Description：RF FILTER BANDSTOP 4.1GHZ MODULE
Series：-
Mfr：Anatech Electronics Inc.
Package：Box

SKU:a487281cdba7 Category: RF Filters Brand: Anatech Electronics Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BANDSTOP 4.1GHZ MODULE
Series：-
Mfr：Anatech Electronics Inc.
Package：Box
Frequency：4.1GHz Center
Bandwidth：75MHz
Filter Type：Band Stop
Ripple：-
Insertion Loss：2dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：5.551" L x 1.181" W (141.00mm x 30.00mm)
Height (Max)：0.642" (16.30mm)

Download product information

AE4100N2260

Overview

The AE4100N2260 is a band stop RF filter manufactured by Anatech Electronics Inc. It features a center frequency of 4.1GHz and a bandwidth of 75MHz. The component has an insertion loss of 2dB and utilizes SMA connectors for interface connections.

Feature Summary

Provides signal rejection at the specified center frequency
Utilizes SMA connector interfaces for integration

Applications

RF signal processing systems requiring notch filtering
Radio frequency equipment needing interference suppression

Procurement Notes

Verify the specific datasheet version from Anatech Electronics Inc. to confirm mechanical dimensions and electrical tolerances. Ensure compatibility with SMA connector types in your system design. Check RoHS status requirements against project specifications before finalizing procurement decisions.

Selection Notes

Select this component when a fixed 4.1GHz notch filter is required. Consider the 75MHz bandwidth relative to adjacent signal channels. Verify that the 2dB insertion loss meets system power budget constraints. Confirm SMA connector polarity and gender match existing circuit board layouts.

Part Context

This part belongs to the AE41 series of band stop filters from Anatech Electronics Inc. These components are designed for passive radio-frequency signal processing applications. The series offers various center frequencies and bandwidth configurations to suit different RF system requirements.

Replacement Considerations

Consult official Anatech documentation for direct substitutes. Verify equivalent center frequency, bandwidth, and connector type when considering alternative models.
