AE420L8961

Overview

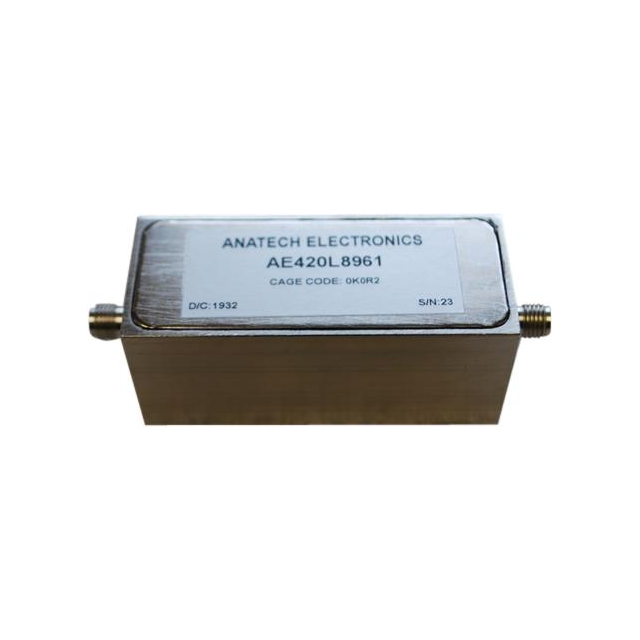

The AE420L8961 is a low-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 420 MHz and a bandwidth of 320 MHz. The component utilizes SMA connectors for interface connections and is housed in a box package. This unit is designed for radio frequency signal processing applications requiring specific attenuation characteristics above the cutoff threshold.

Feature Summary

• Low-pass filtering capability with defined cutoff frequency
• SMA connector interface for RF integration
• Box package housing for module protection

Applications

• Radio frequency signal conditioning
• RF system component integration
• Frequency selective filtering applications

Procurement Notes

Verify the specific datasheet version and connector orientation prior to procurement. Confirm that the SMA connector gender and mating requirements align with the target system design. Ensure environmental specifications meet operational needs as standard documentation may vary.

Selection Notes

Select this component when a 420 MHz cutoff frequency is required for low-pass filtering. The 320 MHz bandwidth specification should be evaluated against system passband requirements. Verify compatibility with existing SMA-based interconnects and physical space constraints within the enclosure.

Part Context

This part belongs to the Anatech Electronics Inc. RF filter product line. It is categorized as a discrete low-pass filter module rather than an integrated circuit. The designation indicates specific electrical performance parameters tailored for radio frequency engineering applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative modules from the same manufacturer series if exact replacement is required, ensuring identical cutoff frequencies and connector types.
