AE43000B11562

Overview

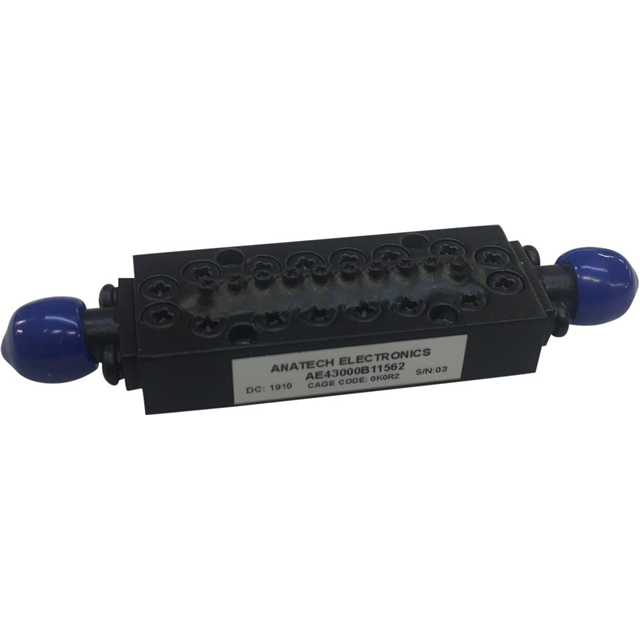

The AE43000B11562 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. Designed for high-frequency applications, this module operates within the 40-46 GHz range with a center frequency of 43 GHz. It features a bandwidth of 6 GHz and an insertion loss of 1.7 dB. The component is housed in a module package suitable for integration into radio frequency systems requiring precise signal filtering in the millimeter-wave spectrum.

Feature Summary

• Cavity construction for stable bandpass performance
• Module packaging for system integration
• Optimized for 43 GHz center frequency operation

Applications

• Radio frequency signal processing
• Millimeter-wave communication systems
• High-frequency test and measurement equipment

Procurement Notes

Verify the specific datasheet version for the AE43000B11562 to confirm mechanical dimensions and electrical tolerances before procurement. Ensure compatibility with existing RF interfaces. Check RoHS status as applicable for your regulatory requirements. Confirm lead times with authorized distributors as availability may vary. Validate that the module package type matches your assembly specifications.

Selection Notes

Select the AE43000B11562 when a 43 GHz center frequency and 6 GHz bandwidth are required. Consider the 1.7 dB insertion loss impact on system gain. Evaluate the module form factor against available board space. Compare performance metrics against alternative cavity filters if tighter bandwidth or lower loss is necessary for the specific application design.

Part Context

Anatech Electronics Inc. specializes in microwave and millimeter-wave components. The AE43000B11562 belongs to their line of RF filters designed for high-frequency stability. This part represents a specialized solution for applications operating in the E-band spectrum, providing reliable filtering characteristics for professional RF engineering use cases.

Replacement Considerations

No public substitute part numbers are confirmed for the AE43000B11562. Verify exact electrical and mechanical specifications when considering alternatives from other manufacturers to ensure functional equivalence in 40-46 GHz applications.
