Product Detailed Parameters
- Description：RF FILTER BANDPASS 430MHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：430MHz Center
- Bandwidth：50MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：2dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：4.690" L x 3.190" W (119.13mm x 81.03mm)
- Height (Max)：2.760" (70.10mm)
Download product information
Overview

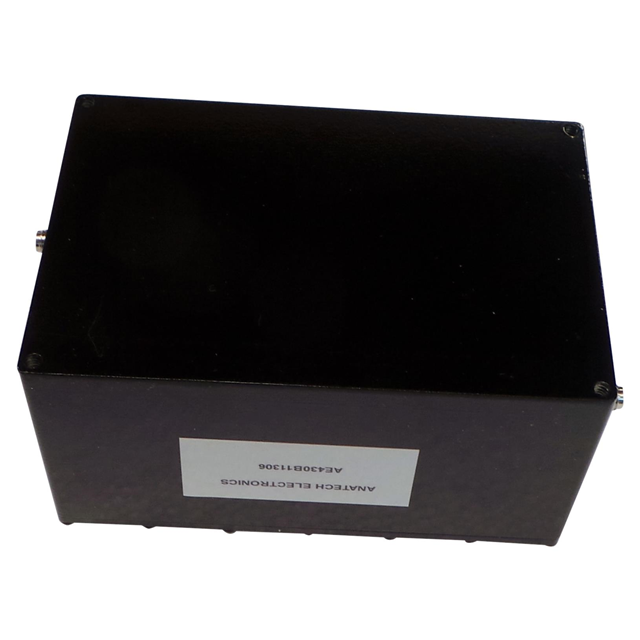

The AE430B11306 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 430MHz and provides a bandwidth of 50MHz. The module features an insertion loss of 2dB and utilizes SMA connectors for interface connectivity.
Feature Summary
- Cavity construction for stable RF performance
- Bandpass filtering capability at specified frequency
- SMA connector integration
Applications
- Commercial RF systems
- Aerospace applications
- Defense electronics
Procurement Notes
Verify the specific datasheet version for precise electrical tolerances and mechanical dimensions. Confirm that the SMA connector type matches your system requirements. Ensure environmental ratings align with your operational conditions before procurement.
Selection Notes
Select this component when a fixed 430MHz center frequency with 50MHz bandwidth is required. Consider the 2dB insertion loss impact on system gain. Verify compatibility with existing SMA interfaces in the signal chain.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters, diplexers, and components for commercial, aerospace, and defense sectors. This part belongs to their cavity filter product line designed for robust radio frequency applications.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Consult manufacturer documentation for potential alternatives if sourcing is restricted.
FAQ
What is the center frequency of the AE430B11306?
The center frequency is 430MHz.
What type of connectors does this filter use?
It uses SMA connectors.
