AE450B10322

Overview

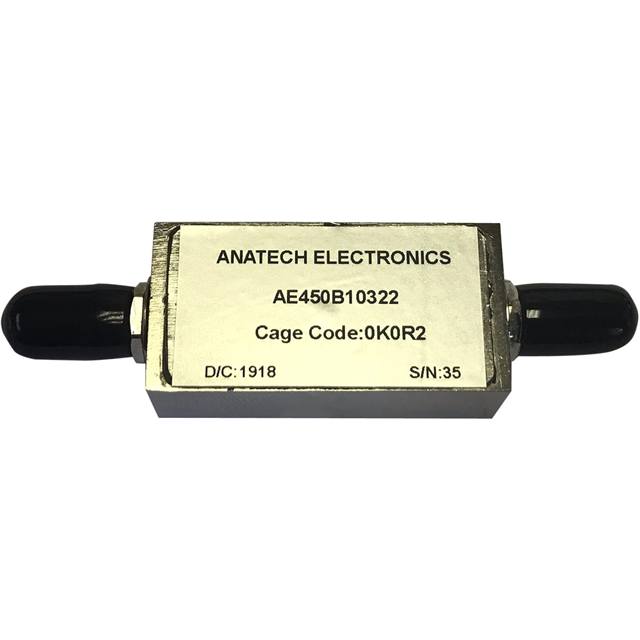

The AE450B10322 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 450 MHz with a bandwidth of 10 MHz. The module features SMA connectors and is designed for radio frequency applications.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering characteristic centered at 450 MHz
• Integrated SMA connector interface

Applications

• Radio frequency signal processing
• Communication system filtering

Procurement Notes

Verify the specific datasheet version and connector orientation before procurement. Confirm that the SMA interface matches the system requirements. Ensure the 450 MHz center frequency aligns with the intended application spectrum. Check for any specific handling instructions regarding the cavity module integrity during installation.

Selection Notes

Select this component when a fixed 450 MHz bandpass response with 10 MHz bandwidth is required. The SMA interface suits standard coaxial connections. Consider the physical dimensions and mounting requirements for the cavity module within the assembly space. Verify compatibility with the operating temperature range specified in the official documentation.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including cavity designs. The AE450B10322 belongs to their bandpass filter lineup, targeting specific frequency bands for communication and signal integrity applications. The company provides both standard and custom filter solutions.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Custom design or spec matching may be required if an exact replacement is unavailable.
