AE456B11159

Overview

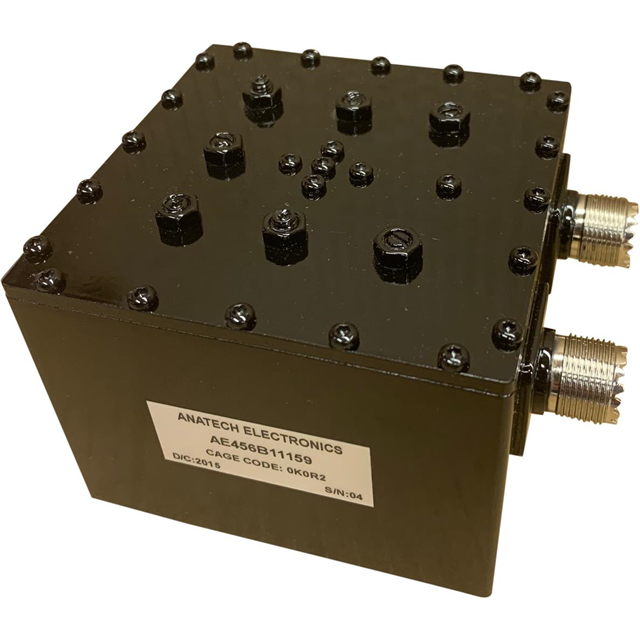

The AE456B11159 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 456.5MHz with an 11MHz bandwidth. The component is housed in a module package, designed for signal conditioning applications requiring precise frequency selection within the radio frequency spectrum.

Feature Summary

• Engineered as a cavity band pass filter for specific frequency isolation
• Designed for efficient signal conditioning at designated radio frequencies

Applications

• Radio frequency signal conditioning
• Frequency selective filtering in communication systems

Procurement Notes

Verify the exact datasheet specifications for insertion loss and power handling before integration. Confirm that the module package dimensions align with your system constraints. Ensure compatibility with your operating environment regarding thermal management and mechanical mounting requirements for this specific Anatech Electronics Inc. component.

Selection Notes

Select this component when a fixed center frequency of 456.5MHz and 11MHz bandwidth are required. Consider the module form factor for integration into existing RF chains. Evaluate if the cavity construction meets your rejection and stability needs compared to other filter technologies available from the manufacturer.

Part Context

This part belongs to the Anatech Electronics Inc. RF Filters category, specifically utilizing cavity technology for band pass applications. It is distinct from suspended stripline or other filter types offered by the same manufacturer, such as those operating at microwave frequencies like 4500 MHz.

Replacement Considerations

Check for AE456B11159-NF as a potential variant. Verify if the suffix indicates a non-filtered version or different specification. Do not assume interchangeability without confirming electrical parameters against the official datasheet.
