Product Detailed Parameters
- Description：RF FILTER 461MHZ/466MHZ
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：-
- Bandwidth：-
- Filter Type：-
- Ripple：-
- Insertion Loss：-
- Mounting Type：-
- Package / Case：-
- Size / Dimension：-
- Height (Max)：-
Download product information
Overview

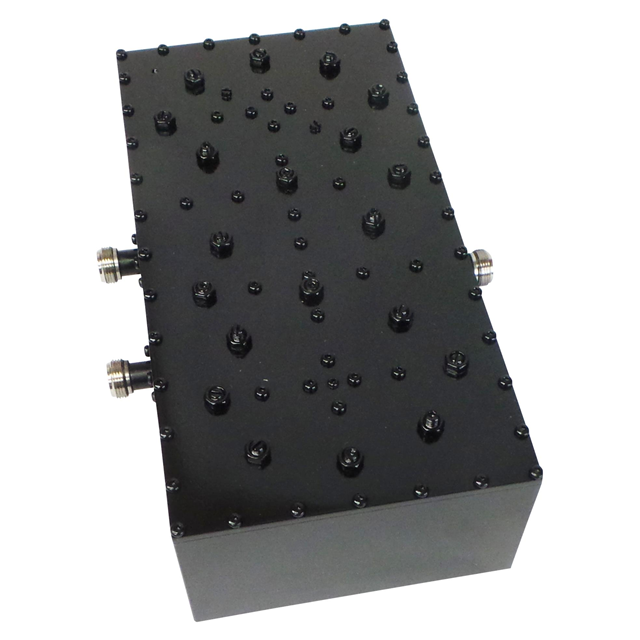

The AE461-466D5496 is a cavity duplexer manufactured by Anatech Electronics Inc. It operates with a transmit frequency of 461 MHz and a receive frequency of 466 MHz. The component is classified as an RF filter designed for radio frequency applications. It complies with RoHS standards and is lead-free. The device functions as a duplexing unit to separate transmit and receive signals within the specified frequency bands.
Feature Summary
- Cavity construction for RF signal separation
- RoHS compliant and lead-free manufacturing
- Designed for specific 461/466 MHz band operation
Applications
- Radio frequency filtering systems
- Duplexing in wireless communication equipment
- RF bandwidth management in transceivers
Procurement Notes
Verify the exact part number suffix against official Anatech Electronics documentation to ensure correct frequency specifications. Confirm RoHS compliance status through manufacturer datasheets rather than distributor summaries. Check for any specific ordering suffixes that may alter electrical characteristics or packaging requirements before finalizing procurement.
Selection Notes
Select this component when a cavity duplexer is required for 461 MHz transmit and 466 MHz receive frequencies. Ensure compatibility with existing RF system architecture. Verify physical dimensions and mounting requirements against design constraints. Confirm that the RoHS compliance meets regulatory standards for the intended deployment region.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters, including cavity duplexers. This model belongs to their line of frequency-selective components designed for robust signal separation. The company focuses on custom and standard RF solutions for communication infrastructure.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult Anatech Electronics directly for cross-reference information or equivalent models with matching frequency and performance specifications.
