AE462B9020

Overview

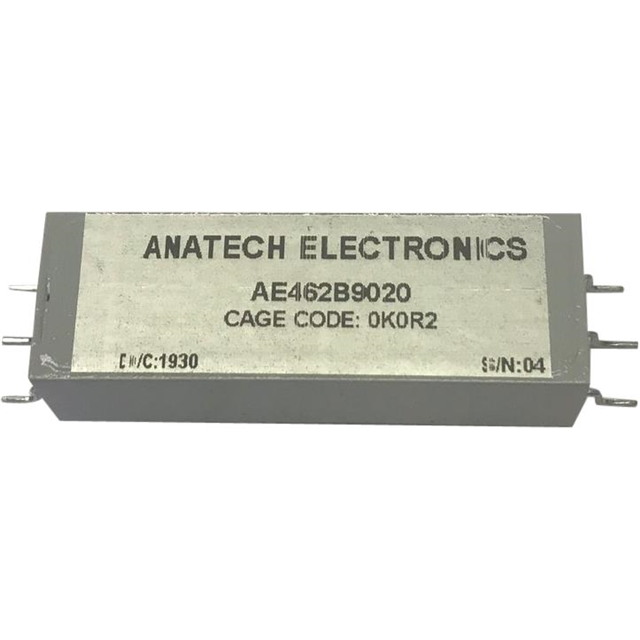

The AE462B9020 is a band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 462 MHz and a passband ranging from 454 to 470 MHz. The component features a maximum insertion loss of 4.5 dB at the center frequency and a minimum return loss of 14 dB within the 457 to 467 MHz range. It is housed in a 6-SMD module package.

Feature Summary

• Provides band pass filtering functionality centered at 462 MHz
• Utilizes LC filter design for signal processing
• Available in a surface mount 6-SMD module configuration

Applications

• Radio frequency signal conditioning
• Wireless communication systems requiring 462 MHz band selection
• RF front-end filtering applications

Procurement Notes

Verify the specific datasheet version for the AE462B9020 to confirm exact electrical tolerances and mechanical dimensions before integration. Ensure compatibility with the target PCB footprint for the 6-SMD package. Confirm that the 4.5 dB insertion loss meets system link budget requirements. Check for any RoHS or REACH compliance status updates directly from the manufacturer, as historical data may vary.

Selection Notes

Select this component when a fixed 462 MHz center frequency is required with a 16 MHz bandwidth. The 4.5 dB insertion loss specification should be evaluated against system sensitivity needs. The 6-SMD form factor dictates the assembly method and board space allocation. Compare return loss performance against other available filters if strict impedance matching is critical for the application.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of radio frequency and microwave filters for military and commercial sectors. The AE462B9020 belongs to their standard line of LC band pass filters, which are designed for specific frequency bands. This product line supports both standard specifications and custom engineering solutions based on customer requirements.

Replacement Considerations

Publicly confirmed substitute part numbers for the AE462B9020 were not identified in the provided source material. Verify compatibility with alternative components by matching the 462 MHz center frequency, 16 MHz bandwidth, and 6-SMD package dimensions.
