AE4650B11712

Overview

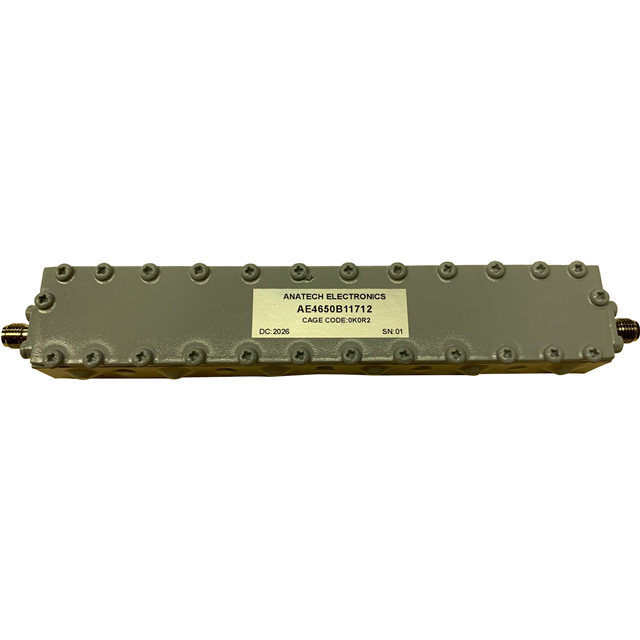

The AE4650B11712 is a cavity band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 4.65 GHz and provides a bandwidth of 620 MHz. The component features an insertion loss of 1.5 dB. Designed for radio frequency applications, this active product utilizes a module form factor suitable for RF signal conditioning.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering capability at specified center frequency
• Module form factor for integration

Applications

• Radio frequency signal conditioning
• Microwave communication systems
• RF filter modules

Procurement Notes

Verify the specific datasheet version for precise mechanical dimensions and electrical tolerances before integration. Confirm that the module form factor aligns with your system requirements. Ensure compatibility with operating temperatures and environmental conditions specified in the official documentation. Cross-reference part numbers to avoid substitution errors.

Selection Notes

Select this component when a 4.65 GHz center frequency and 620 MHz bandwidth are required. Consider the 1.5 dB insertion loss impact on system gain. Evaluate the cavity construction benefits against space constraints. Verify that the module package fits the intended RF assembly layout.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This company designs and manufactures various filter types including band pass, low pass, and high pass variants. The AE4650B11712 represents their cavity-based solutions for specific frequency bands.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
