AE466B11549

Overview

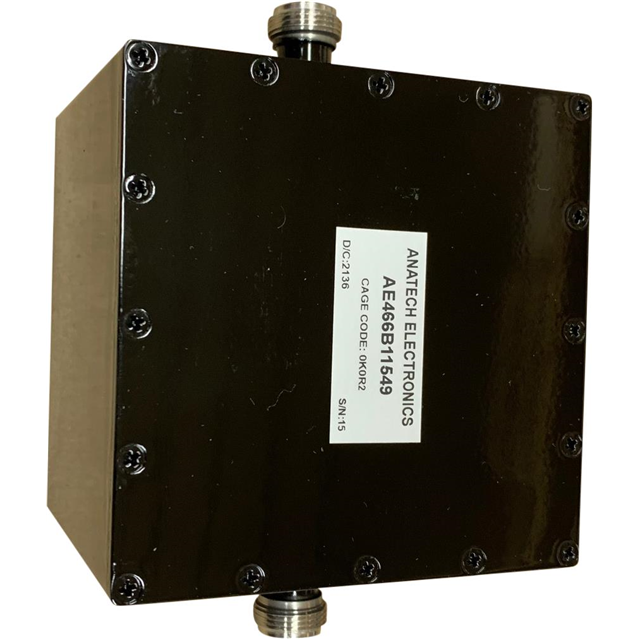

The AE466B11549 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 466.675 MHz and provides a bandwidth of 2 MHz. The component features an insertion loss of 1 dB. This module is designed for radio frequency applications requiring precise signal filtering within the specified frequency range.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability at 466.675 MHz
• Module form factor for integration

Applications

• Radio frequency signal processing
• Communication systems filtering

Procurement Notes

Verify the specific center frequency of 466.675 MHz and 2 MHz bandwidth requirements against system specifications before procurement. Confirm that the 1 dB insertion loss meets the link budget constraints. Ensure mechanical compatibility with existing mounting structures, as this is a cavity module. Check for any specific environmental operating temperature ranges if deployed in non-standard conditions. Validate supplier authenticity through authorized channels to ensure component integrity.

Selection Notes

Select this component when a narrow 2 MHz bandwidth is required at 466.675 MHz. Consider the cavity technology for high selectivity compared to planar alternatives. Evaluate the 1 dB insertion loss impact on overall system noise figure. Compare physical dimensions against available board space. Assess whether the module format suits the assembly process versus discrete components.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. The AE466B11549 belongs to their cavity bandpass filter series. These components are typically used in communication infrastructure. The manufacturer focuses on custom and standard RF solutions. This part represents a specific frequency point in their portfolio.

Replacement Considerations

No public confirmed substitute part numbers are available for the AE466B11549. Any replacement must match the 466.675 MHz center frequency, 2 MHz bandwidth, and 1 dB insertion loss exactly. Mechanical footprint compatibility is critical. Verify electrical performance equivalence with potential alternative sources.
