AE47000B11572

Overview

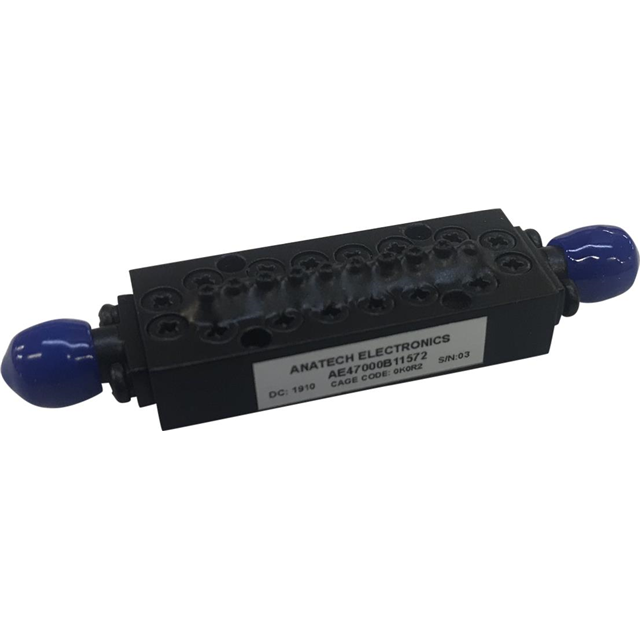

The AE47000B11572 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc., designed for high-frequency applications. It operates with a center frequency of 47 GHz and provides a bandwidth of 6 GHz, covering the 44-50 GHz range. The component exhibits an insertion loss of 1.7 dB within its passband. Physically, it measures 1.57 x 0.629 x 0.314 inches. The unit supports an operating temperature range from -40°C to +80°C and complies with RoHS standards.

Feature Summary

• Cavity construction for stable microwave performance
• Bandpass filtering in the 44-50 GHz spectrum
• RoHS compliant manufacturing

Applications

• Microwave communication systems
• Satellite ground stations
• Point-to-point wireless links

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure exact electrical specifications match the design requirements. Confirm that the physical dimensions and mounting interface are compatible with the intended chassis or assembly. Check for any recent updates to the datasheet regarding environmental ratings or compliance certifications before finalizing the purchase order.

Selection Notes

Select this component when a narrow bandpass response is required around 47 GHz. The 6 GHz bandwidth offers moderate selectivity suitable for standard microwave channels. Consider the 1.7 dB insertion loss impact on system noise figure and power budget. Ensure the mechanical form factor fits the available space constraints in the equipment layout.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including cavity, suspended stripline, and waveguide designs. This model belongs to their cavity bandpass filter series, which utilizes resonant cavities to achieve high Q-factors and sharp cutoff characteristics. The company focuses on custom and standard solutions for frequencies ranging from DC to millimeter-wave bands.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 47 GHz center frequency, 6 GHz bandwidth, and 1.7 dB insertion loss specifications exactly.
