AE470H9109

Overview

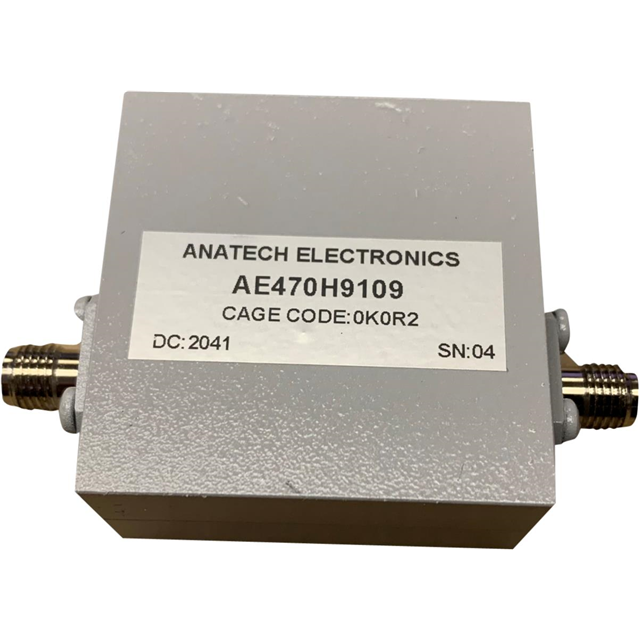

The AE470H9109 is a high-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 470 MHz and operates within a bandwidth extending to 9.53 GHz. The component exhibits an insertion loss of 1 dB and provides a minimum rejection of 30 dB. It utilizes SMA connectors for interface connectivity and is designed for radio frequency applications requiring signal filtering above the specified threshold.

Feature Summary

• High-pass filtering capability with a defined 470 MHz cutoff frequency
• Wide operational bandwidth extending up to 9.53 GHz
• Low insertion loss characteristic of 1 dB for efficient signal transmission
• Minimum rejection level of 30 dB to suppress unwanted lower frequencies

Applications

• Radio frequency signal processing systems
• RF communication equipment requiring high-pass filtering
• Military and commercial RF filter applications
• Signal integrity maintenance in wideband RF circuits

Procurement Notes

Verify the specific datasheet version from Anatech Electronics Inc. to confirm mechanical dimensions and connector specifications. Ensure compatibility with system impedance requirements, typically 50 ohms for RF modules. Check for any updated environmental compliance certifications or material declarations prior to final procurement approval.

Selection Notes

Select this component when a fixed high-pass response at 470 MHz is required. Consider the SMA connector type for integration ease. Evaluate the 1 dB insertion loss against system power budgets. Confirm that the 9.53 GHz upper limit meets the application's spectral requirements without excessive attenuation.

Part Context

Anatech Electronics Inc. specializes in standard and custom radio frequency filters for military and commercial sectors. The AE470H9109 belongs to their line of LC high-pass filter modules. These components are engineered for robust performance in demanding RF environments, providing reliable frequency discrimination.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify electrical parameters such as cutoff frequency, insertion loss, and connector type before considering alternative manufacturers or models.
