AE483N2256

Overview

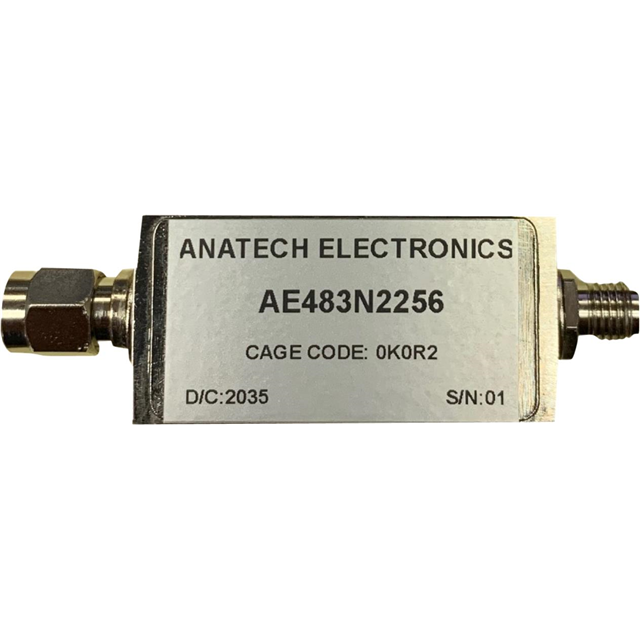

The AE483N2256 is a band stop RF filter manufactured by Anatech Electronics Inc. It features a center frequency of 483.1 MHz and a bandwidth of 1 MHz. The component utilizes LC technology for notch filtering applications. It is supplied as a module equipped with SMA connectors, designed for integration into radio frequency systems requiring specific frequency rejection.

Feature Summary

• LC band stop topology for precise notch filtering
• SMA connector interface for modular integration
• Fixed center frequency design at 483.1 MHz

Applications

• Radio frequency signal processing modules
• Interference suppression in communication systems
• Test and measurement equipment filters

Procurement Notes

Verify the exact center frequency and bandwidth specifications against your system requirements before procurement. Confirm that the SMA connector type matches your existing infrastructure. Ensure the module form factor fits within your designated enclosure space. Check for any specific handling instructions regarding RF components to maintain performance integrity during installation.

Selection Notes

Select this component when a fixed 483.1 MHz notch filter is required. The LC construction offers specific phase and amplitude characteristics distinct from other filter types. Consider the SMA interface compatibility with your circuit board or cable assemblies. Evaluate the physical module dimensions to ensure proper mechanical fit within the assembly.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including lumped element designs. The AE483N2256 belongs to their line of band stop filters, which are engineered for specific frequency rejection tasks. These components are typically used in scenarios where precise attenuation of a narrow frequency band is necessary without affecting adjacent signals.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
