AE4900B10922

Overview

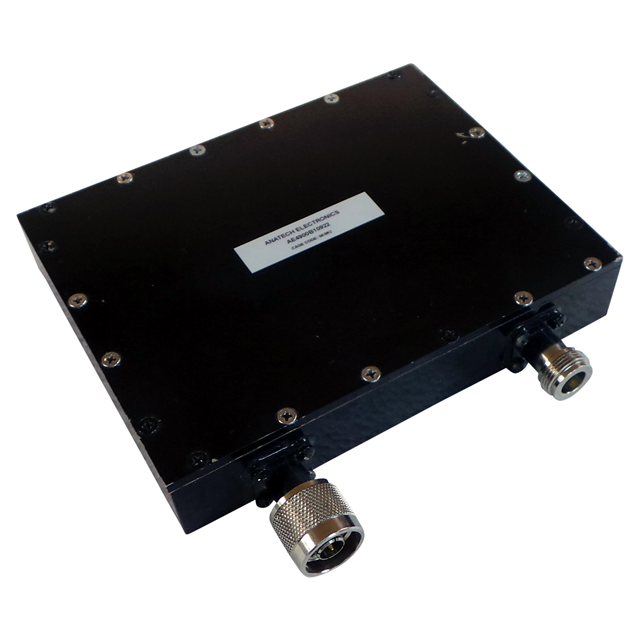

The AE4900B10922 is a bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 4900 MHz and maintains a passband range from 4800 MHz to 5000 MHz. The component features an input/output impedance of 50 Ohms and exhibits an insertion loss of less than 1.25 dB at the center frequency.

Feature Summary

• Provides selective signal transmission within the specified microwave frequency range
• Maintains low signal attenuation in the designated passband
• Designed for integration into radio frequency circuit systems

Applications

• Microwave communication systems
• Radio frequency signal processing
• Test and measurement equipment

Procurement Notes

Verify the exact electrical specifications against the official product datasheet before procurement. Confirm that the center frequency, passband width, and insertion loss requirements align with your system design. Ensure the 50 Ohm impedance matches your circuit interface. Check for RoHS compliance status if required by your manufacturing standards.

Selection Notes

Select this component when a fixed center frequency of 4900 MHz is required. Consider the 100 MHz total bandwidth for signal filtering needs. Evaluate the insertion loss specification against system sensitivity requirements. Ensure physical dimensions and connector types are compatible with the intended assembly environment.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. This company produces various filter types including bandpass, lowpass, and highpass configurations. The AE4900B10922 represents their capability in providing standardized microwave components for professional applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer directly for potential cross-references or custom design alternatives if this specific model is unavailable.
