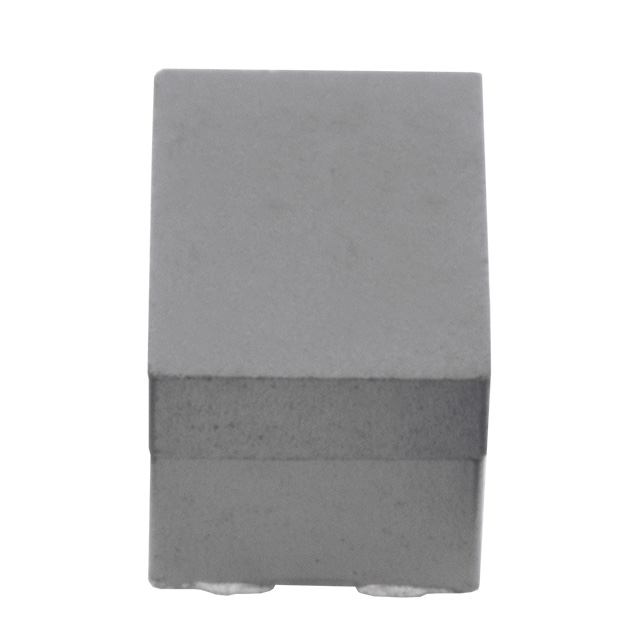

AE5002

$3.04

Description：CMC 100UH 100MA 2LN SMD AEC-Q200
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a544fefcd7f8 Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 100UH 100MA 2LN SMD AEC-Q200
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：-
Number of Lines：2
Current Rating (Max)：100mA
DC Resistance (DCR) (Max)：4.2Ohm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max)：0.116" (2.95mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：100 µH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

AE5002

Overview

The AE5002 is a surface-mount common mode filter choke from Pulse Electronics, designed for Automotive Ethernet applications. It supports 1000BASE-T1 communication at 1G speed and holds AEC-Q200 qualification. The component features an inductance of 120 µH and a maximum DC resistance of 4.2 Ohms. It operates within a temperature range of -40°C to +125°C and has a maximum DC current rating of 100 mA. The physical dimensions are 4.5mm x 3.2mm x 2.8mm.

Feature Summary

AEC-Q200 qualified for automotive reliability standards
Optimized for 1000BASE-T1 Ethernet signaling integrity
Compact surface-mount package design

Applications

Automotive Ethernet network interfaces
1000BASE-T1 transceiver circuits
In-vehicle high-speed data communication systems

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct packaging configuration. Confirm that the AEC-Q200 qualification status meets your project's automotive reliability requirements. Check the latest Product Change Notification documents for any updates regarding materials or manufacturing location changes before finalizing procurement.

Selection Notes

Select this component when designing for 1000BASE-T1 automotive networks requiring robust common mode noise suppression. Ensure the 100 mA current rating aligns with the signal line requirements. Verify that the 4.2 Ohm DC resistance does not exceed the allowable loss budget for the specific Ethernet link segment being designed.

Part Context

This part belongs to the Automotive Ethernet series by Pulse Electronics. It serves as a critical passive component for maintaining signal integrity in high-speed vehicular data buses. The component addresses electromagnetic interference concerns in modern vehicle architectures.
