AE5050N2258

Overview

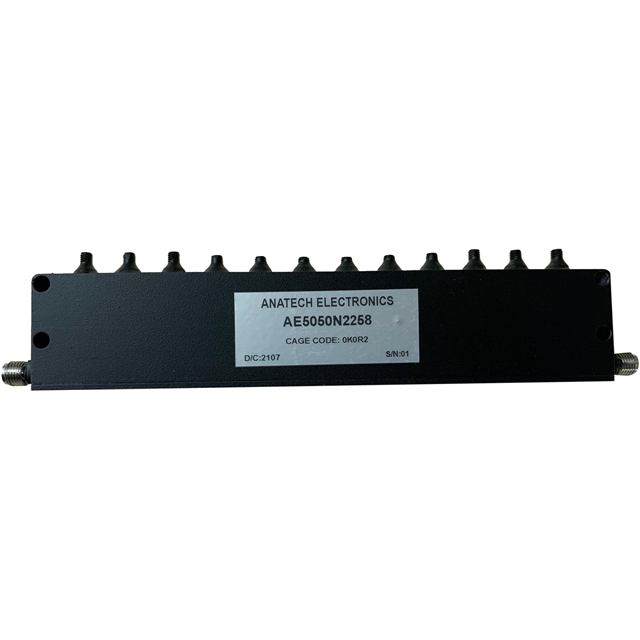

The AE5050N2258 is a band stop RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 5.05 GHz and features a bandwidth of 20 MHz. The component is designed as a module for radio frequency applications, specifically targeting the suppression of signals within its defined notch range.

Feature Summary

• Provides band stop filtering functionality to attenuate specific frequency ranges.

Applications

• Radio frequency signal processing modules

Procurement Notes

Verify the exact datasheet version (AE5050N2258.pdf) against your design requirements. Confirm that the 5.05 GHz center frequency and 20 MHz bandwidth align with your system's interference mitigation needs. Ensure compatibility with your existing RF module form factor before finalizing procurement decisions.

Selection Notes

Select this component when a fixed 20 MHz notch at 5.05 GHz is required. Compare against other Anatech models like AE483N2256 or AE5350N2266 if different frequency bands are needed. Ensure the module package fits your assembly constraints.

Part Context

This part belongs to the Anatech Electronics Inc. RF Filters category, specifically within their LC Notch Filter series. It is distinct from wideband filters and serves as a specialized solution for narrowband interference rejection in the 5 GHz range.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate adjacent models such as AE5350N2266 only if frequency tolerance allows significant deviation.
