AE510B11165

Overview

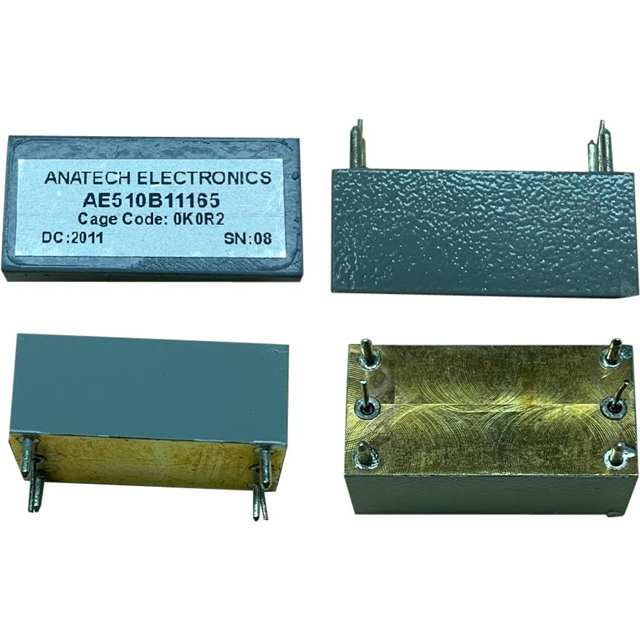

The AE510B11165 is a band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 510 MHz and features an 8 MHz bandwidth. The component exhibits an insertion loss of 9.5 dB. It is housed in a 6-DIP module package, designed for radio frequency signal processing applications requiring specific frequency selection.

Feature Summary

• Provides band pass filtering functionality at a designated center frequency
• Utilizes a 6-DIP module housing for integration
• Designed for radio frequency signal applications

Applications

• Radio frequency signal processing
• Frequency selection circuits
• RF communication systems

Procurement Notes

Verify the part number AE510B11165 against official Anatech Electronics documentation to confirm specifications. Ensure compatibility with 510 MHz center frequency requirements and 6-DIP package constraints. Cross-reference datasheet parameters for insertion loss and bandwidth before procurement.

Selection Notes

Select this component when a fixed 510 MHz band pass response is required. Consider the 8 MHz bandwidth and 9.5 dB insertion loss characteristics relative to system sensitivity. Evaluate the 6-DIP package form factor for board layout compatibility.

Part Context

Anatech Electronics Inc. manufactures standard and custom RF filters for military and commercial use. This model belongs to their line of band pass filters, distinct from tunable variants like the AE105 series. The company focuses on RF and microwave filter design.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Consult Anatech Electronics directly for equivalent or alternative components meeting similar 510 MHz specifications.
