AE530B11253

Overview

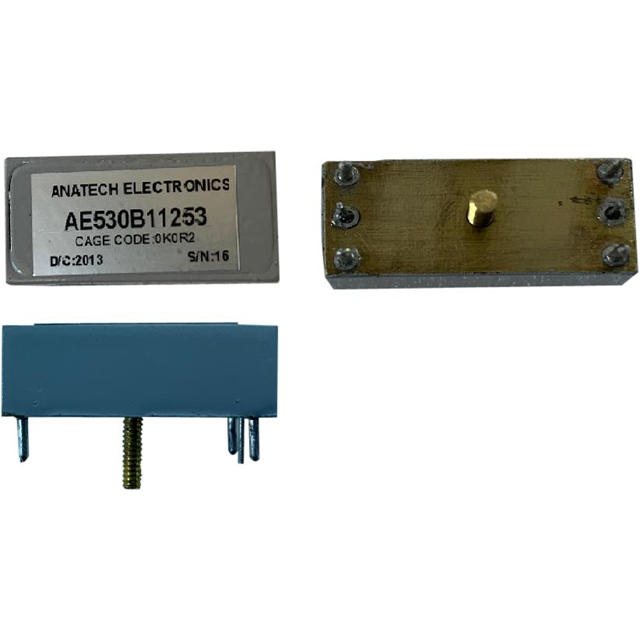

The AE530B11253 is a band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 530 MHz and provides a bandwidth of 33 MHz. The component exhibits an insertion loss of 4.5 dB. It is housed in a 6-DIP module package, designed for radio frequency signal processing applications requiring specific frequency selection characteristics.

Feature Summary

• Band pass filtering capability centered at 530 MHz
• Defined 33 MHz operational bandwidth
• Low insertion loss characteristic of 4.5 dB
• Standard 6-DIP module packaging

Applications

• Radio frequency signal conditioning
• Communication system frequency selection
• RF circuit interference rejection

Procurement Notes

Verify the exact datasheet specifications directly from Anatech Electronics Inc. prior to procurement. Confirm that the 6-DIP package dimensions and pinout align with your PCB layout requirements. Ensure the 4.5 dB insertion loss meets your system budget. Check RoHS compliance status as indicated in official documentation, noting that some sources list it as not applicable or unaffected by REACH regulations.

Selection Notes

Select this component when a fixed 530 MHz center frequency with 33 MHz bandwidth is required. The 4.5 dB insertion loss should be acceptable for your link budget. The 6-DIP form factor dictates the physical footprint on the printed circuit board. Consider thermal management and mounting constraints associated with DIP modules during design integration.

Part Context

Anatech Electronics Inc. specializes in standard and custom radio frequency filters for military and commercial sectors. The AE530B series represents their line of LC band pass filters. This specific model utilizes lumped element construction within a shielded DIP enclosure to provide stable RF performance in compact spaces.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material. Cross-referencing requires matching center frequency, bandwidth, insertion loss, and package type with other manufacturers' offerings.
