AE540B10366

Overview

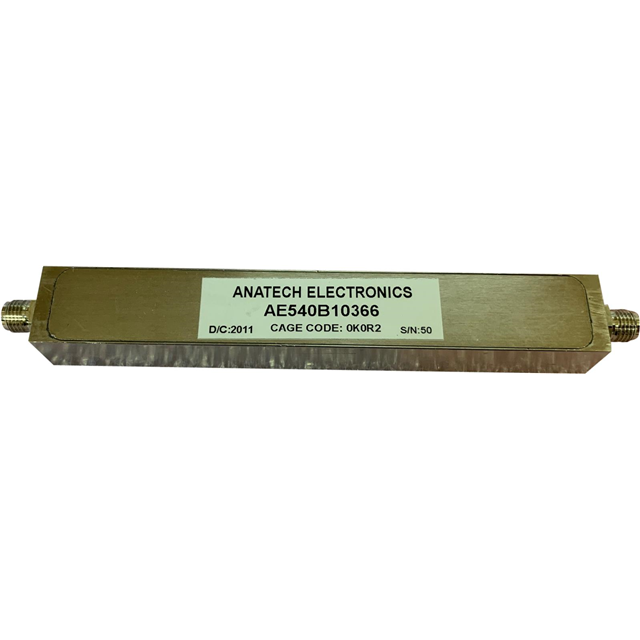

The AE540B10366 is a bandpass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 540 MHz with a bandwidth of 50 MHz. The module features SMA connectors and exhibits an insertion loss of 2.5 dB. Designed for chassis mounting, this LC bandpass filter is classified under ECCN EAR99.

Feature Summary

• LC bandpass filter design
• Chassis mounting configuration
• SMA connector interface

Applications

• RF signal processing
• Radio frequency systems
• Microwave applications

Procurement Notes

Verify the specific datasheet for complete electrical characteristics and mechanical drawings before integration. Confirm that the SMA connector type matches your system requirements. Ensure chassis mounting provisions align with your enclosure design. Check regulatory compliance status if required for your specific deployment environment.

Selection Notes

Select this component when a fixed 540 MHz center frequency with 50 MHz bandwidth is required. The 2.5 dB insertion loss specification should be evaluated against system link budget constraints. Consider the chassis mount form factor for physical installation compatibility. Verify that the LC technology meets the thermal and environmental conditions of the intended application.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. This company produces various filter types including low pass, high pass, band pass, and notch filters. The AE540B10366 represents their capability to provide specialized LC-based solutions for specific frequency bands within the radio frequency spectrum.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for potential cross-references or custom design options if exact replacement is required.
