Product Detailed Parameters
- Description：RF FILTER HI PASS 5.5GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：5.5GHz (Cutoff)
- Bandwidth：17.5GHz
- Filter Type：High Pass
- Ripple：-
- Insertion Loss：2dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.299" L x 0.945" W (33.00mm x 24.00mm)
- Height (Max)：0.406" (10.30mm)
Download product information
Overview

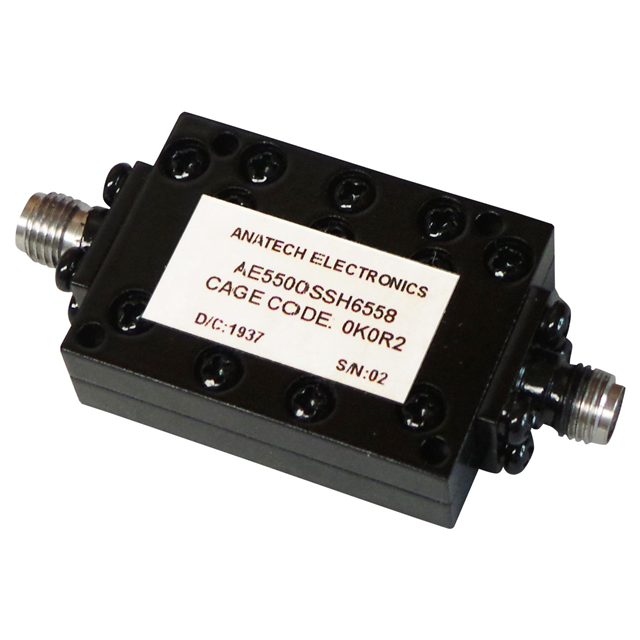

The AE5500SSH6558 is a suspended stripline high-pass filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 5.5 GHz with a passband extending from 5.5 to 23 GHz. Insertion loss is specified as ≤2.0 dB within the 5.5–5.8 GHz range and ≤1.0 dB from 5.8 to 23 GHz. The component supports a power handling capacity of 15 W and provides rejection of 60 dB.
Feature Summary
- Utilizes suspended stripline technology for low-loss performance
- Designed for high-power RF applications up to 15 W
- Provides steep cutoff characteristics starting at 5.5 GHz
Applications
- RF communication systems requiring high-frequency signal filtering
- Microwave test and measurement equipment
- Military and commercial radar systems
Procurement Notes
Verify the specific datasheet version when ordering, as manufacturer specifications may be updated. Confirm that the required power handling and frequency range align with your system design before procurement. Ensure compatibility with your existing connector types and mounting requirements. Contact Anatech Electronics directly for detailed technical drawings and latest certification status.
Selection Notes
Select this component when a high-pass response above 5.5 GHz is required with minimal insertion loss in the upper microwave bands. Consider the 15 W power rating for high-energy signal paths. Evaluate the suspended stripline construction for superior thermal and electrical performance compared to standard microstrip designs in demanding environments.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial communications. The AE5500SSH6558 belongs to their suspended stripline product line, which emphasizes low loss and high power handling. This series is designed to meet rigorous performance standards for critical signal processing applications in advanced electronic systems.
FAQ
What is the maximum power handling capability of the AE5500SSH6558?
The component supports a power handling capacity of 15 W.
Does the insertion loss vary across the passband?
Yes, insertion loss is ≤2.0 dB from 5.5 to 5.8 GHz and improves to ≤1.0 dB from 5.8 to 23 GHz.
