AE5500WN2228

Overview

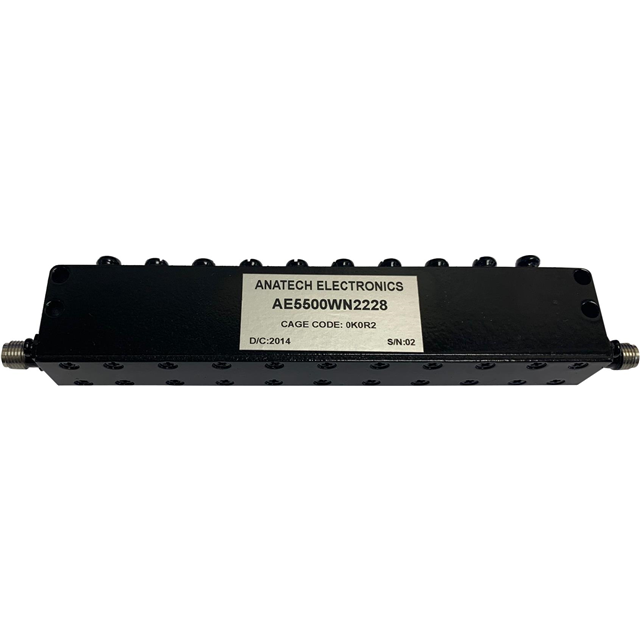

The AE5500WN2228 is a bandstop RF filter module manufactured by Anatech Electronics Inc. It operates with a center frequency of 5.5 GHz and features SMA connectors. The stop band frequency range is specified from 5150 MHz to 5850 MHz, providing attenuation of at least 40 dB within this range. The pass bands extend from DC to 4900 MHz and from 6100 MHz to 12000 MHz.

Feature Summary

• Provides high attenuation in the designated stop band while maintaining signal integrity in pass bands
• Utilizes SMA connectors for standard interface compatibility
• Designed as a module for integration into RF systems

Applications

• RF signal filtering applications requiring notch characteristics at 5.5 GHz
• Microwave communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version and electrical tolerances directly with Anatech Electronics Inc. or authorized distributors before procurement. Confirm connector type and mounting requirements match system specifications. Ensure environmental ratings meet operational needs. Cross-reference part numbers to avoid confusion with similar models in the product line.

Selection Notes

Select this component when a bandstop response centered at 5.5 GHz is required. Consider the 40 dB minimum attenuation and the wide pass band coverage up to 12 GHz. Evaluate if the SMA interface and module form factor suit the design constraints. Compare against other Anatech filters if different bandwidths or frequencies are needed.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including bandstop designs. The company offers custom engineering services and maintains an ISO 9001:2015 certification. This model is part of their broader portfolio of waveguide and suspended stripline filter solutions designed for various frequency ranges.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
