AE550B11254

Overview

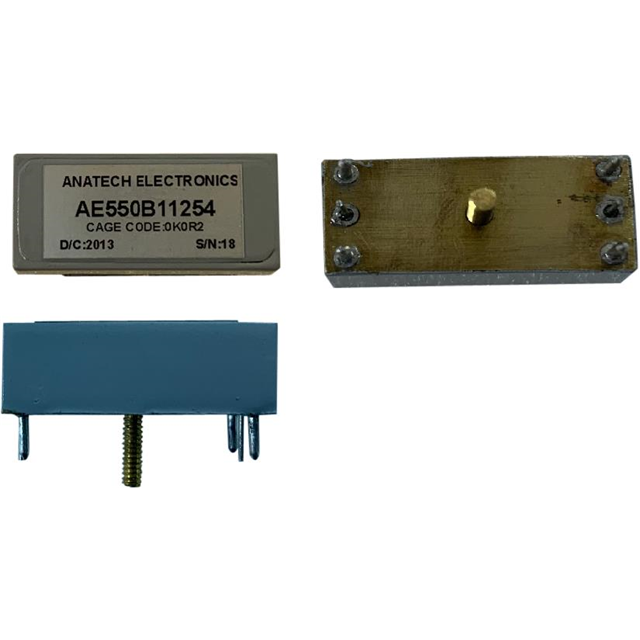

The AE550B11254 is a band pass RF filter manufactured by Anatech Electronics Inc. It features a center frequency of 550MHz and a bandwidth of 34MHz. The component exhibits an insertion loss of 5dB. It is housed in a 6-DIP module package.

Feature Summary

• Provides selective signal transmission within the specified radio frequency range
• Utilizes LC circuit topology for filtering performance
• Designed as a standalone module for integration into RF systems

Applications

• Radio frequency signal processing
• Communication system filtering
• RF equipment intermediate frequency stages

Procurement Notes

Verify the specific datasheet version and manufacturing date code upon order confirmation. Confirm that the 6-DIP package dimensions match your PCB layout requirements. Ensure the operating environment temperature range aligns with the component specifications. Request material compliance documentation if required for your assembly process.

Selection Notes

Select this component when a fixed 550MHz center frequency with 34MHz bandwidth is required. The 5dB insertion loss specification should be evaluated against system link budget constraints. The 6-DIP form factor dictates the physical mounting and spacing considerations on the printed circuit board.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. This company produces various filter types including band pass, low pass, and high pass configurations. The AE550B11254 represents their capability to provide discrete RF filtering solutions for specific frequency applications.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
