AE560B11167

Overview

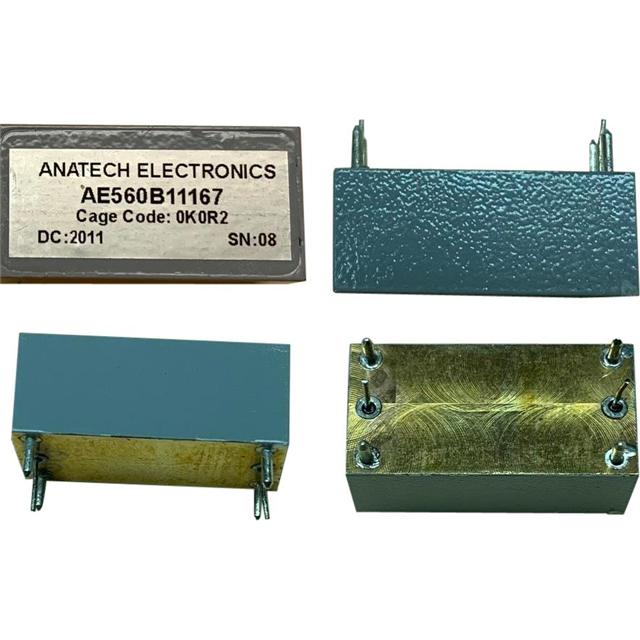

The AE560B11167 is a bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 560 MHz and provides an 8 MHz bandwidth. The component exhibits an insertion loss of 9.5 dB. It is housed in a 6-DIP module package, designed for integration into radio frequency signal processing systems requiring specific frequency selection characteristics.

Feature Summary

• Provides bandpass filtering functionality centered at 560 MHz
• Utilizes a 6-DIP module housing configuration
• Engineered for radio frequency signal applications

Applications

• Radio frequency signal processing
• Communication system frequency selection

Procurement Notes

Verify the exact datasheet specifications against the manufacturer's official documentation before procurement. Confirm that the 9.5 dB insertion loss and 8 MHz bandwidth align with your circuit requirements. Ensure the 6-DIP package dimensions are compatible with your PCB layout. Cross-reference the part number AE560B11167 with authorized distributors to confirm current availability and authenticity.

Selection Notes

Select this component when a fixed 560 MHz center frequency with narrow 8 MHz bandwidth is required. Consider the 9.5 dB insertion loss impact on signal strength within your system design. Evaluate the 6-DIP form factor for mechanical integration constraints. Compare performance metrics against alternative bandpass filters if lower insertion loss or different bandwidths are necessary for the application.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company offers various filter types including bandpass, low pass, and high pass configurations. This model belongs to their standard RF filter product line, which supports diverse communication and electronic testing applications through standardized module formats.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
