AE5800B11316

Overview

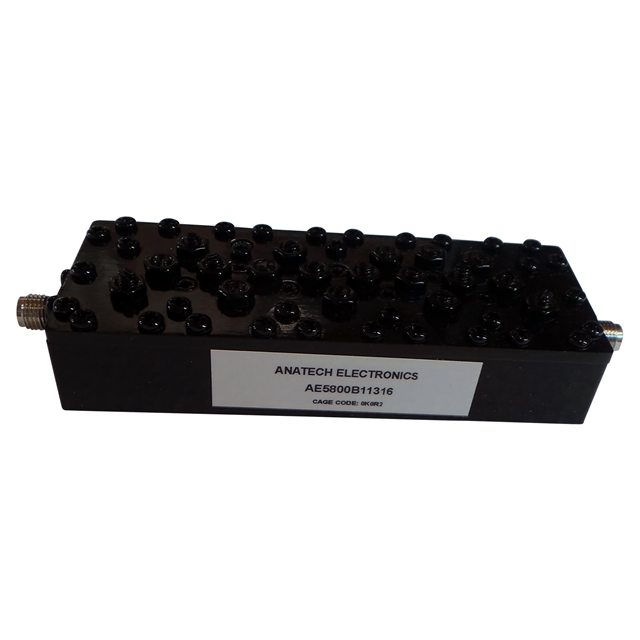

The AE5800B11316 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 5.8 GHz and provides a bandwidth of 400 MHz. The component features an insertion loss of 1 dB and a Voltage Standing Wave Ratio (VSWR) of 1.40:1. It utilizes SMA female connectors for interface connections and is designed for chassis mounting. The maximum height of the unit is 0.990 inches (25.15 mm).

Feature Summary

• Cavity construction for stable RF performance
• SMA female connector interfaces
• Chassis mount design

Applications

• Radio frequency signal processing
• Communication systems filtering
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector specifications. Ensure compatibility with existing chassis mounting hardware. Confirm that the SMA female interface matches the system cabling requirements. Check regulatory compliance status such as ECCN classification for export purposes.

Selection Notes

Select this component when a 5.8 GHz center frequency with 400 MHz bandwidth is required. The 1 dB insertion loss and 1.40:1 VSWR indicate low signal attenuation and good impedance matching. Consider the chassis mount form factor and SMA connectivity for integration into rigid RF assemblies.

Part Context

This part belongs to the Anatech Electronics cavity filter series, which are engineered for high-performance RF applications. These filters typically offer superior rejection characteristics compared to planar technologies. The AE5800B11316 specifically targets microwave frequency bands requiring precise bandwidth control.

Replacement Considerations

Cross-reference with other Anatech cavity filters in the same frequency range. Verify that substitute parts maintain the 5.8 GHz center frequency and 400 MHz bandwidth. Ensure mechanical fit and SMA connector compatibility before substitution.
