AE5S2038

Overview

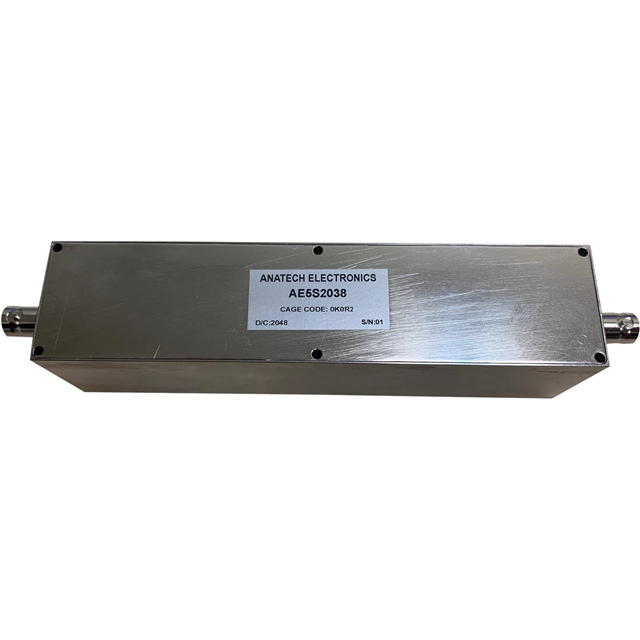

The AE5S2038 is a band stop RF filter manufactured by Anatech Electronics Inc. It features a center frequency of 5 MHz and a bandwidth of 4 MHz with an insertion loss of 1 dB. The component utilizes BNC connectors for in-line module integration, designed for radio frequency signal processing applications.

Feature Summary

• Band stop filtering capability centered at 5 MHz
• In-line module configuration with BNC interface

Applications

• Radio frequency signal processing
• Military systems
• Commercial aerospace applications
• Defense electronics

Procurement Notes

Verify the manufacturer part number AE5S2038 against official Anatech Electronics documentation to confirm specifications. Ensure compatibility with required BNC interfaces and 5 MHz center frequency requirements before procurement. Cross-reference datasheets for precise electrical parameters.

Selection Notes

Select this component when a fixed 5 MHz notch filter is required within an RF system. Consider the 4 MHz bandwidth and 1 dB insertion loss characteristics relative to system sensitivity. Verify that BNC connectivity meets existing infrastructure standards.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial sectors. This model belongs to their standard filter lineup, supporting aerospace and defense applications through certified manufacturing processes.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult Anatech Electronics directly for potential alternatives or custom modifications if exact specifications cannot be met.

FAQ

What is the center frequency of the AE5S2038?

The center frequency is 5 MHz.

What type of connector does the AE5S2038 use?

It uses BNC connectors for in-line module integration.
