Product Detailed Parameters
- Description：RF FILTER HIGH PASS 6GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：6GHz (Cutoff)
- Bandwidth：12GHz
- Filter Type：High Pass
- Ripple：0.1dB
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：0.075" L x 0.625" W (1.91mm x 15.88mm)
- Height (Max)：0.500" (12.70mm)
Download product information
Overview

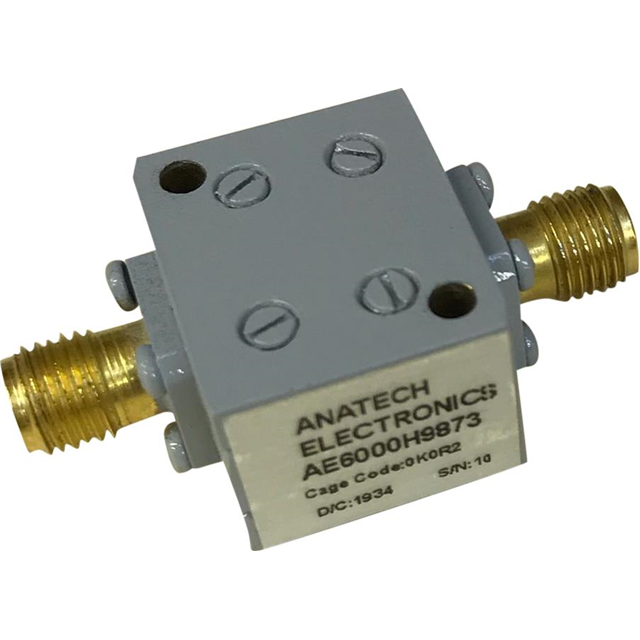

The AE6000H9873 is a high-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 6 GHz and provides a bandwidth of 12 GHz with a maximum insertion loss of 1 dB in the passband. The component utilizes LC filter technology and is housed in a module form factor equipped with SMA connectors for interfacing.
Feature Summary
- High-pass filtering capability designed to attenuate frequencies below the specified cutoff point while allowing higher frequencies to pass with minimal loss.
Applications
- Radio frequency signal processing systems
- Microwave communication infrastructure
- Test and measurement equipment requiring high-frequency signal conditioning
Procurement Notes
Verify the specific connector type and mechanical dimensions against your system requirements before procurement. Confirm that the 6 GHz cutoff frequency aligns with your application's spectral needs. Ensure compatibility with SMA interfaces for proper integration into existing RF assemblies.
Selection Notes
Select this component when a high-pass response with a 6 GHz threshold is required. Consider the 12 GHz bandwidth and low insertion loss characteristics for applications demanding efficient signal transmission above the cutoff frequency. Evaluate the module form factor for ease of integration into standard RF test setups or communication modules.
Part Context
Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. This company produces both standard and custom filter solutions for military and commercial applications, focusing on high-performance components for signal integrity.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer engineering databases for spec-matched alternatives if direct substitution is required.
FAQ
What is the cutoff frequency of the AE6000H9873?
The cutoff frequency is 6 GHz.
What type of connectors does this module use?
The module is equipped with SMA connectors.
