AE600L7838

Overview

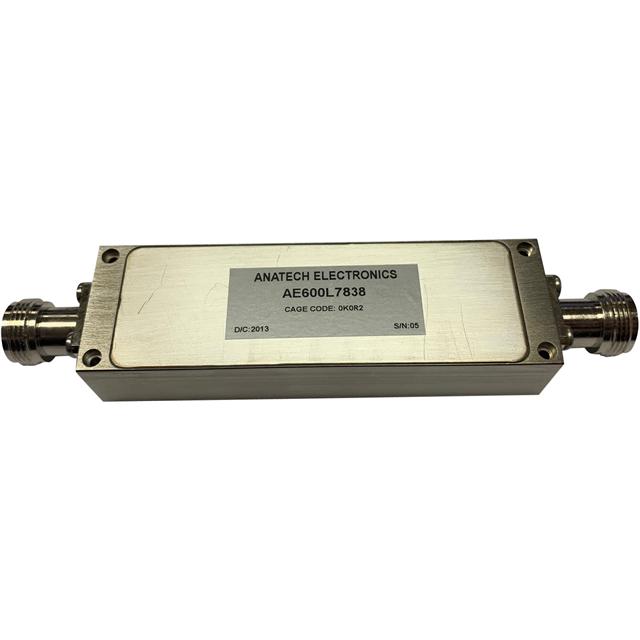

The AE600L7838 is a low-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 600 MHz with a passband extending from DC to 600 MHz. The component specifies a maximum insertion loss of 0.3 dB and a minimum return loss of 20 dB within the passband. Designed for radio frequency applications, it is supplied in a box package configuration.

Feature Summary

• Provides effective attenuation of signals above the 600 MHz cutoff frequency
• Maintains signal integrity with minimal insertion loss in the passband
• Offers high impedance matching characterized by specified return loss limits

Applications

• Radio frequency signal conditioning
• Microwave system filtering
• Spectrum management equipment

Procurement Notes

Verify the specific datasheet version for the AE600L7838 to confirm mechanical dimensions and connector types before integration. Ensure compatibility with operating frequencies up to 600 MHz. Check for any specific handling requirements associated with RF modules. Confirm that the supplier provides original manufacturer documentation to validate performance specifications against the official Anatech Electronics Inc. standards.

Selection Notes

Select this component when a sharp cutoff at 600 MHz is required for low-pass filtering applications. Consider the 0.3 dB insertion loss specification for systems sensitive to signal attenuation. Evaluate the module form factor against available space constraints. Compare return loss performance against system impedance requirements to ensure adequate signal reflection management in the design.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company produces various filter types including low-pass, high-pass, band-pass, and notch filters. This model belongs to their line of LC low-pass filters designed for precise frequency control in communication and testing environments.

Replacement Considerations

No public confirmed substitute part numbers are available for the AE600L7838.
